51 43 255 Removing and installing/replacing trim for rear left or right roof pillar (front)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow SAFETY INSTRUCTIONS for working on cars with airbag systems.
IMPORTANT:
Do not use any sharp-edged tools to remove trim (risk of damage to head airbag).
Necessary preliminary tasks:
- Remove TRIM FOR REAR ROOF PILLAR (REAR) .

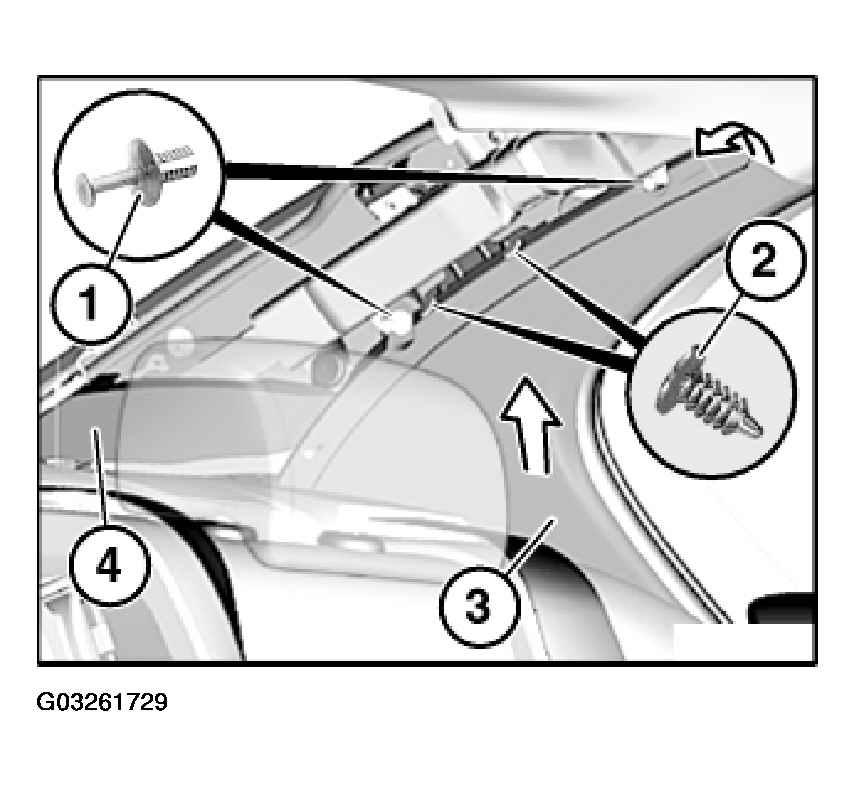

Detach expansion rivets (1) and clips (2) from trim (3).
Pull out trim (3) inwards/upwards.
Installation:
If necessary, replace faulty clips (2) or expansion rivets (1).
Installation:

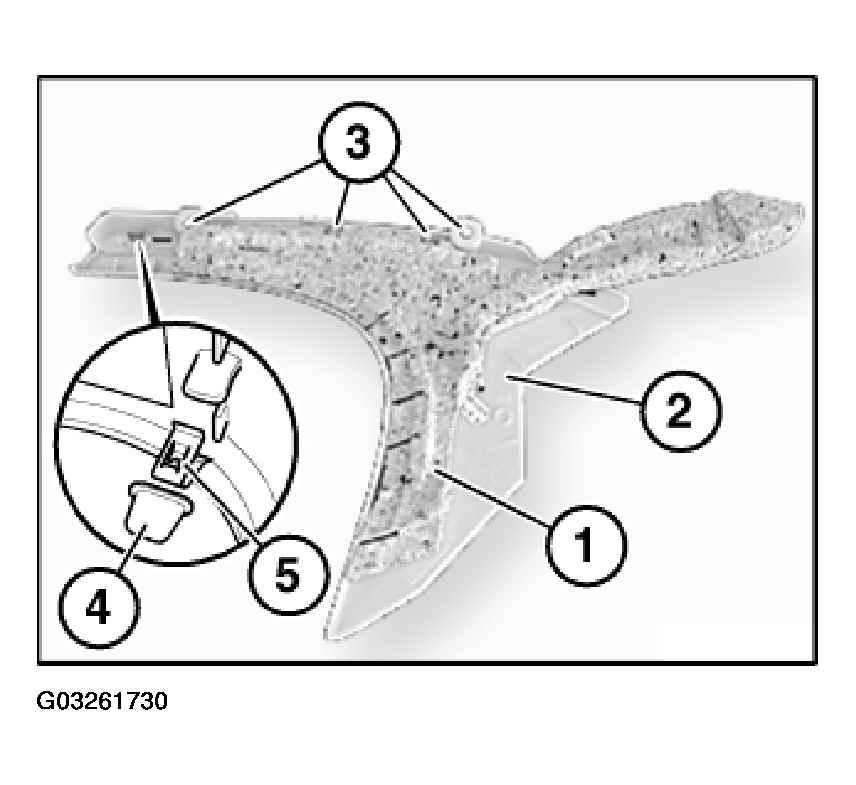

Following parts of trim (2) must not be damaged or missing:
1) Insulating mat
3) Bores
4) Grommet
5) Retainer
