51 43 251 Removing and installing/replacing trim for rear left or right roof pillar (rear)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow SAFETY INSTRUCTIONS for working on cars with airbag systems.
IMPORTANT:
Do not use any sharp-edged tools to remove trim (risk of damage to head airbag).

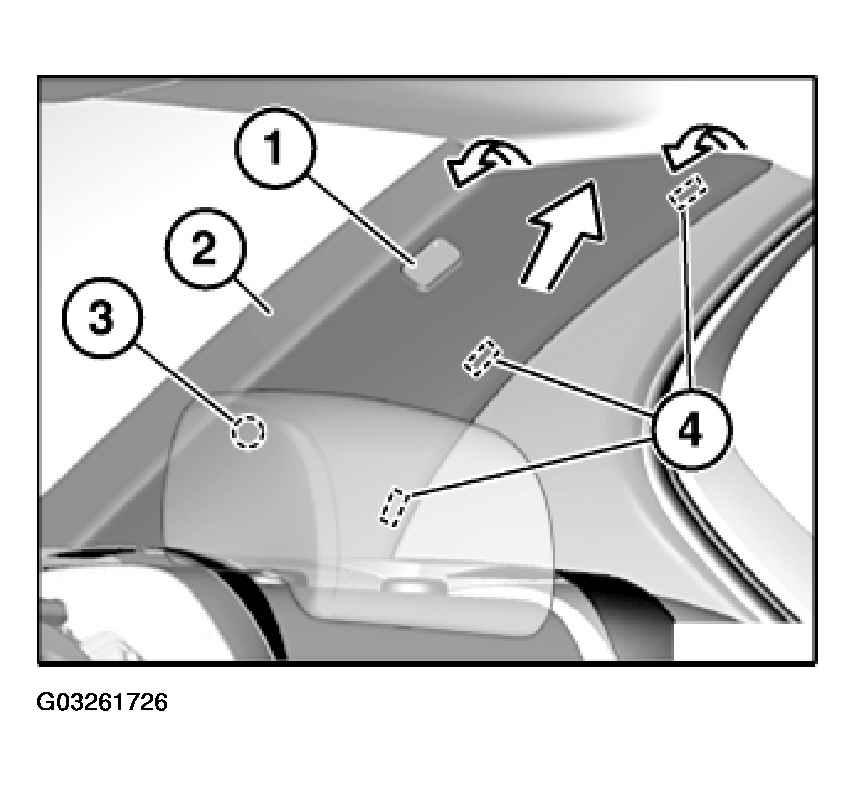

Lever out airbag emblem (1) and release screw underneath.
Installation:
Tightening torque see 1AZ in 51 43 SIDE TRIM PANEL WITH ARMRESTS .
Unclip clip (3) and clips (4) of trim (2) and pull out trim (2) inwards and upwards.
Installation:

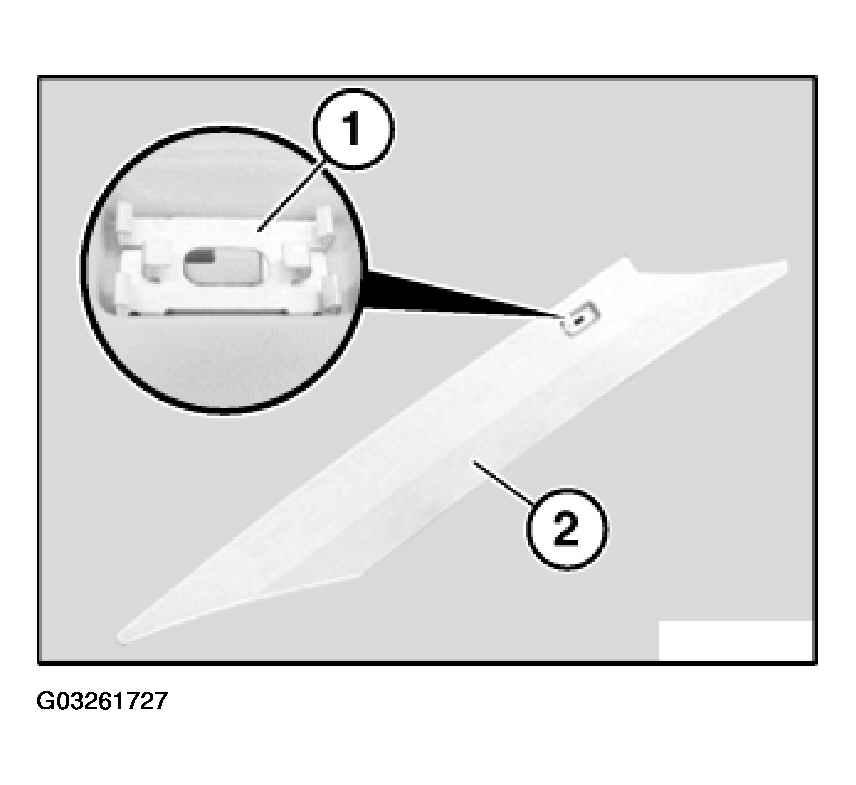

Retainer (1) on trim (2) must not be damaged or missing.
Installation:

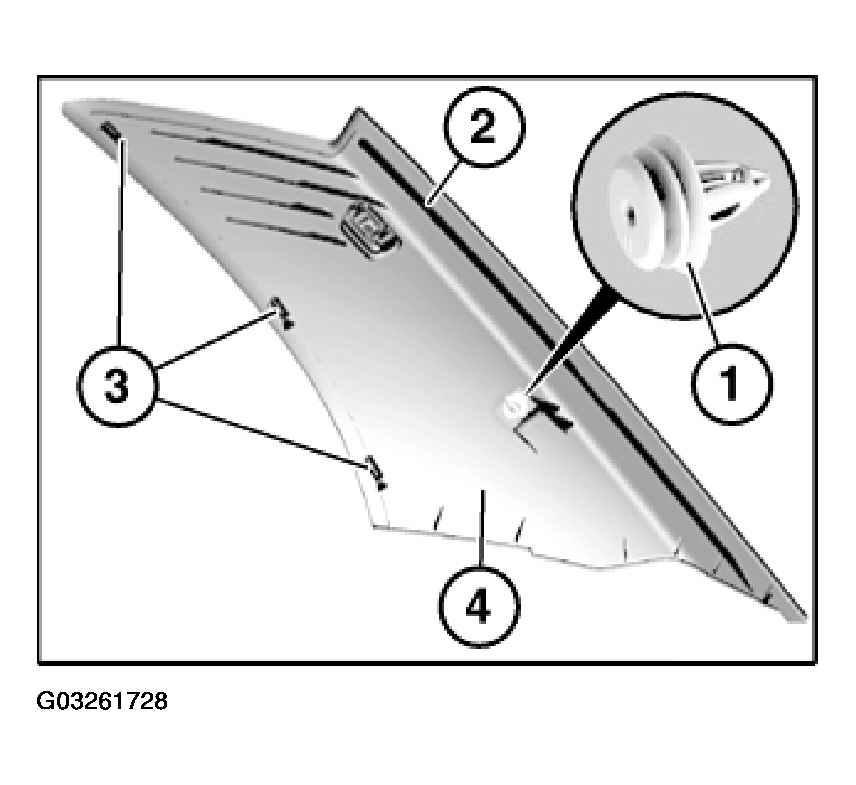

Following parts of trim (4) must not be damaged or missing:
- Clip
- Guide
- Clips
