51 47 000 Removing and installing/replacing front (inside) left or right entrance cover strip
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

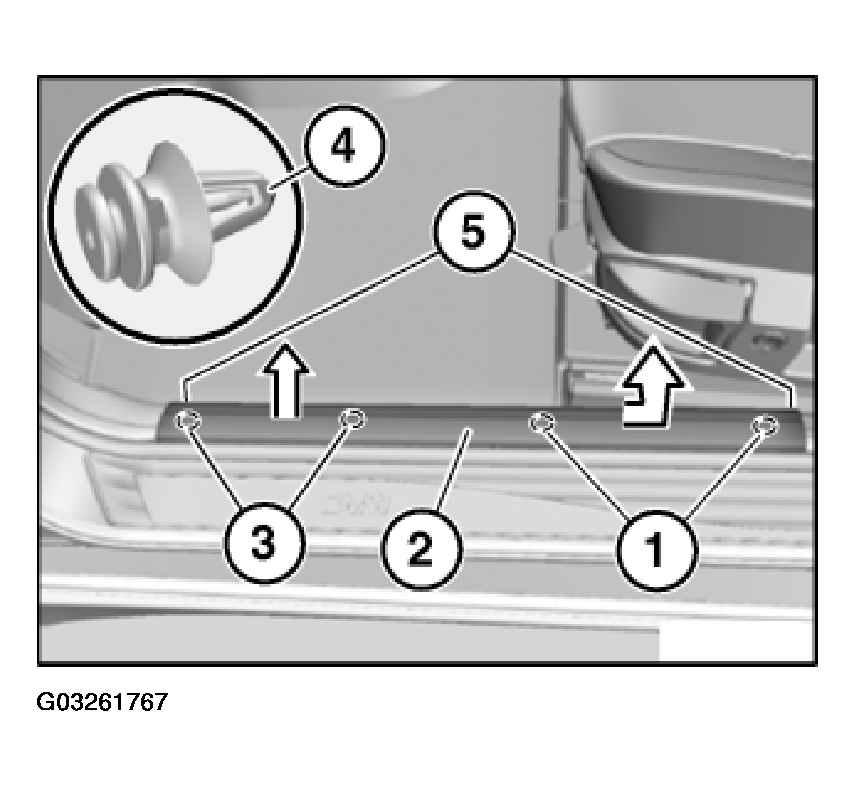

Disengage retaining lugs (5) of front entrance cover strip (2) from both adjoining panels.
IMPORTANT:
Carefully lever out front entrance cover strip (2).
Lever out front entrance cover strip (2) at front retaining points (3).
Pull back front entrance cover strip (2) and feed out of rear retaining points (1).
Installation:
Position front entrance cover strip (2) preinstalled with clips (4) on associated bores and clip into place.
Installation:

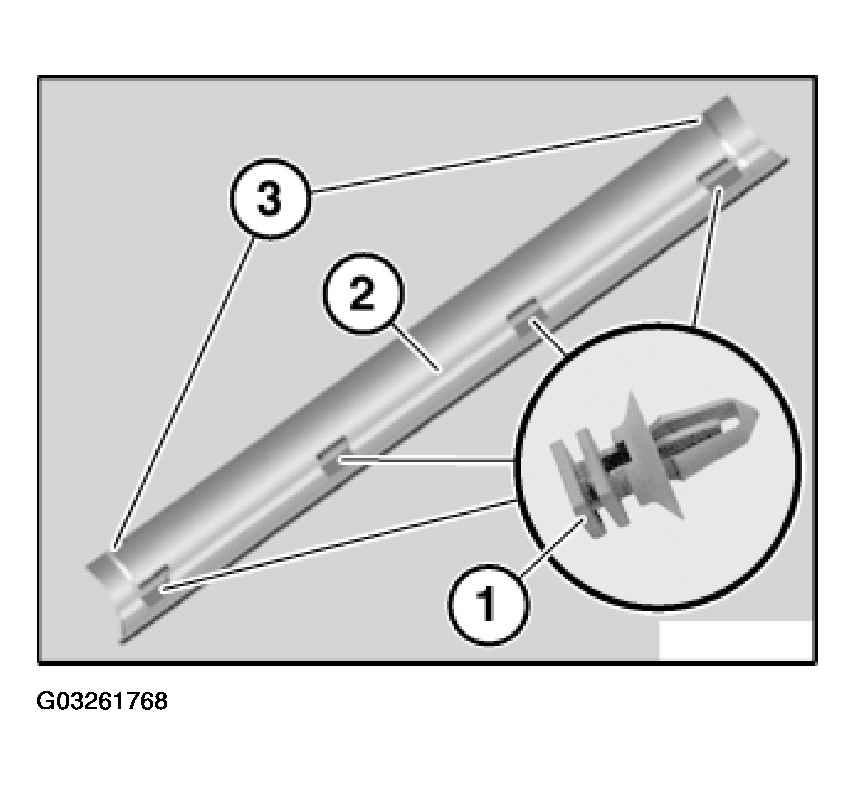

Rails of front entrance cover strip (2) must not be damaged.
Retaining lugs (3) of front entrance cover strip (2) must not be damaged.
If necessary, lever out remaining clips (1) in floor panel.
If necessary, replace faulty clips (1).
Slide clips (1) into rails of front entrance cover strip (2).
