51 43 148 Removing and installing or replacing trim on left or right door pillar (top)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PANEL FOR DOOR PILLAR (BOTTOM) .
Release SEAT BELT SCREW ON FRONT SEAT .

Release clips (1).

Pull off panel (2) towards bottom.

Separate webbing.

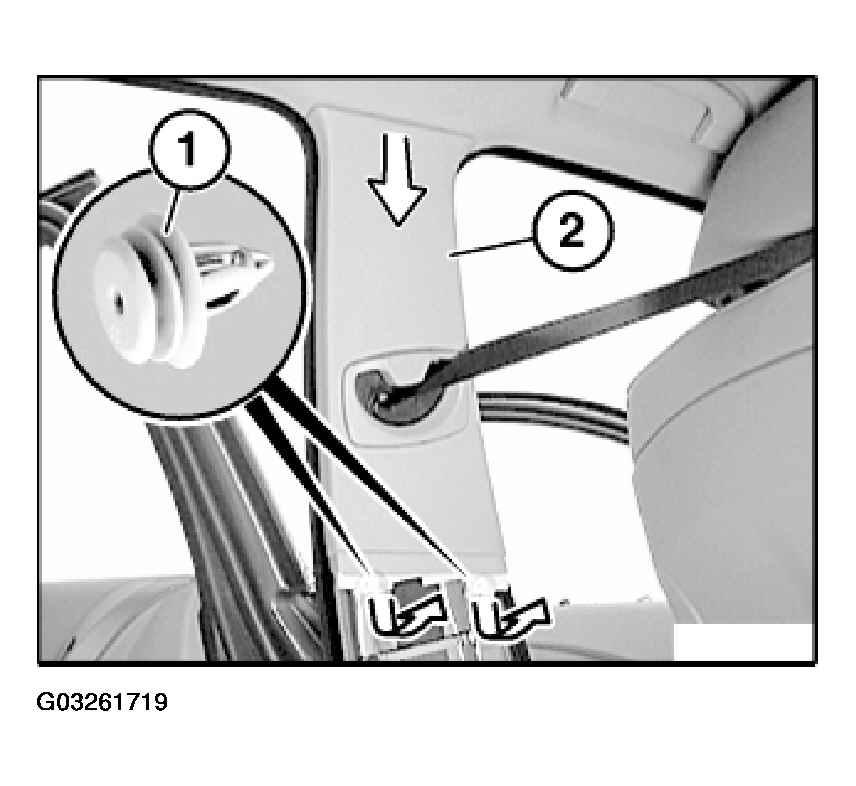

Fig 1: Removing Panel Towards Bottom

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of trim (1) must not be damaged or missing:

2) Guides

3) Clips

Fixtures for expansion rivets
Belt finisher strip

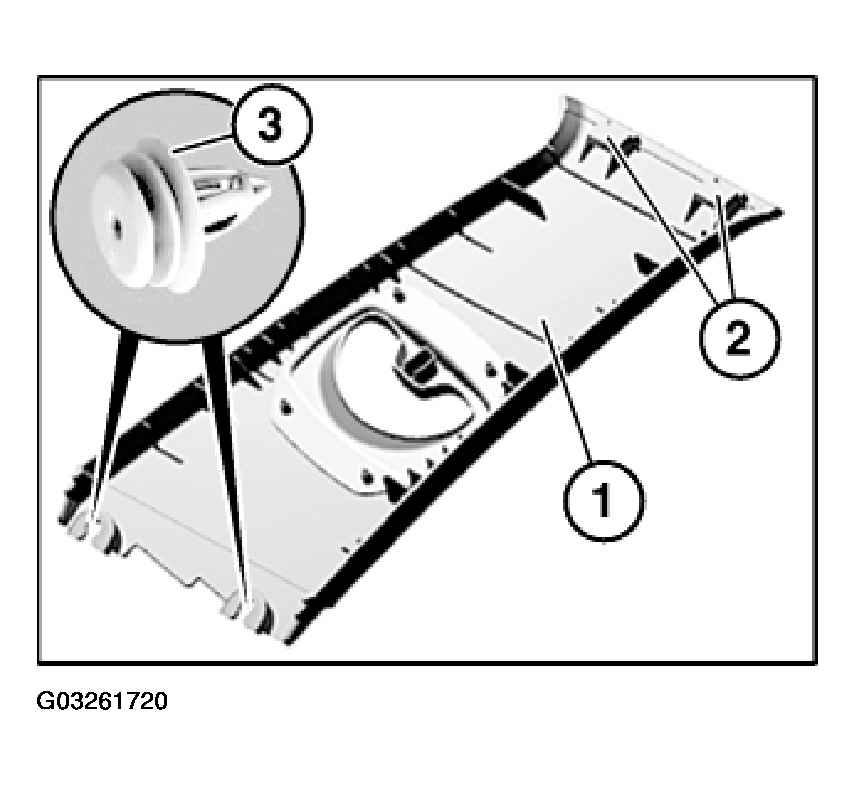

Fig 2: Identifying Trim (1) Guides (2) And Clips (3)

Courtesy of BMW OF NORTH AMERICA, INC.
