51 43 075 Removing and installing/replacing side trim panel, footwell, on A-pillar, right

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT ENTRANCE COVER STRIP (INSIDE) .

Release door mucket (1) in area of footwell side trim panel on A-pillar on right (2).

Unclip footwell side trim panel on A-pillar on right (2) in direction of arrow from retaining points (3).

Remove footwell side trim panel on A-pillar on right (2).

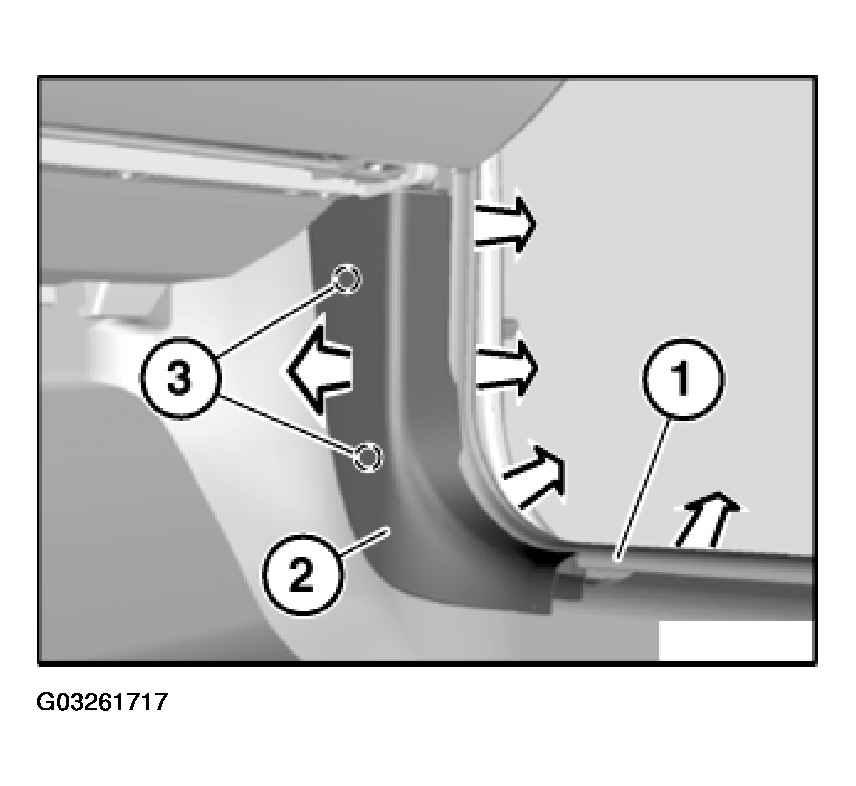

Fig 1: Removing Footwell Side Trim Panel On A-Pillar On Right

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, lever out clips (1) remaining in bores.

If necessary, replace faulty clips (1).

Position side trim panel (2) preinstalled with clips (1) on associated bores and clip into place.

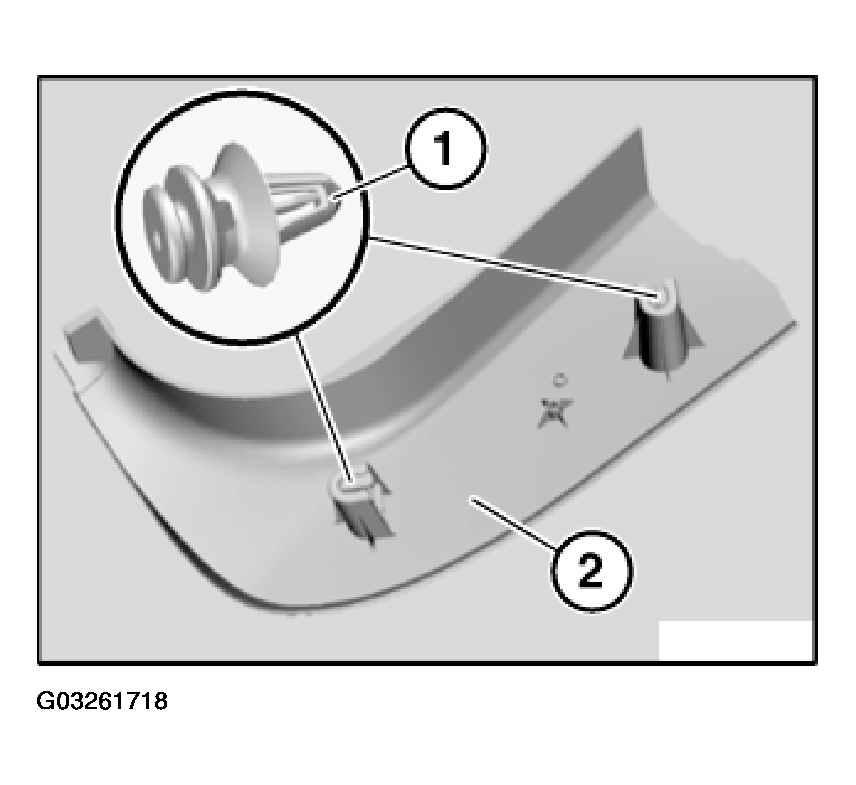

Fig 2: Placing Footwell Side Trim Panel On A-Pillar On Right

Courtesy of BMW OF NORTH AMERICA, INC.
