51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT ENTRANCE COVER STRIP (INSIDE) .

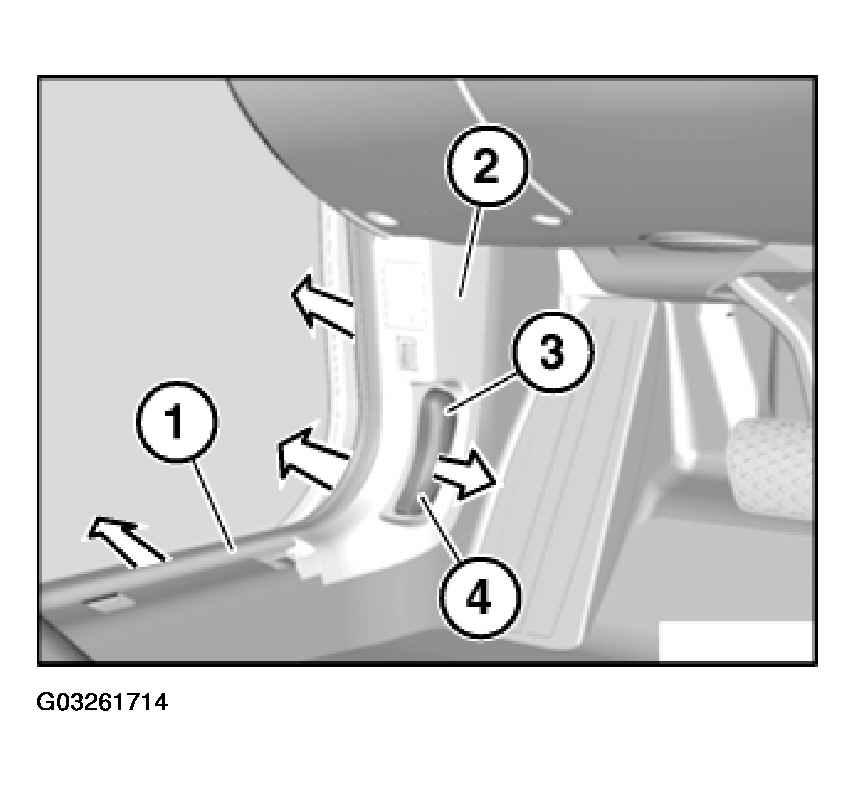

Release door mucket (1) in area of footwell side trim panel on A-pillar on left (2).

Unscrew bolt (3).

Remove engine hood actuator lever (4) from footwell side trim panel on A-pillar on left (2).

Fig 1: Removing Engine Hood Actuator Lever From Footwell Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

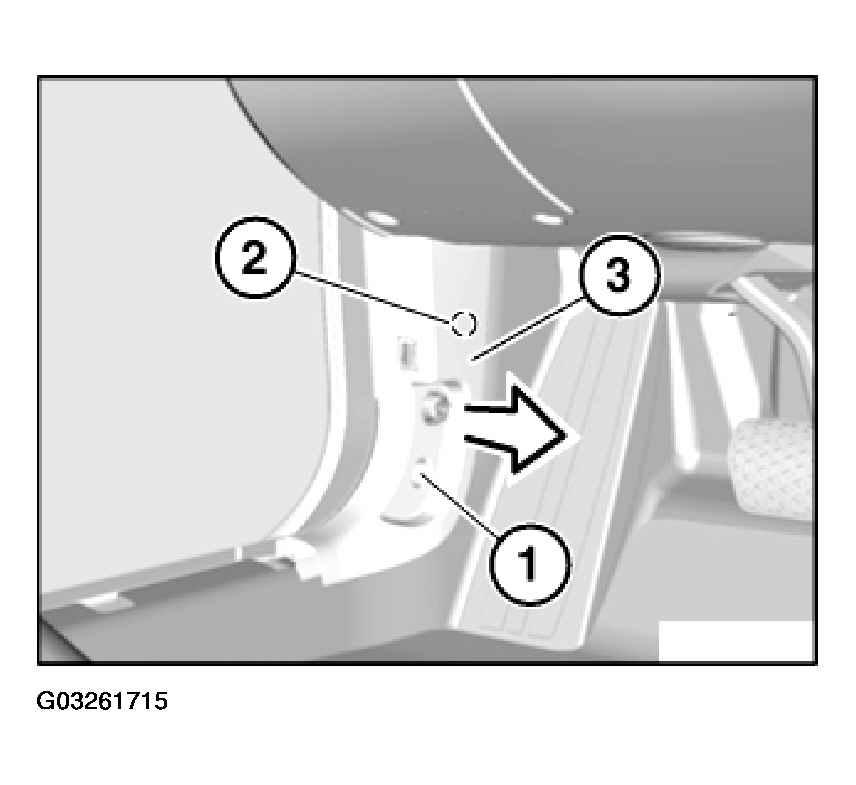

Unscrew bolt (1).

Unclip footwell side trim panel on A-pillar on left (3) in direction of arrow from retaining point (2) and remove.

Fig 2: Removing Footwell Side Trim Panel Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

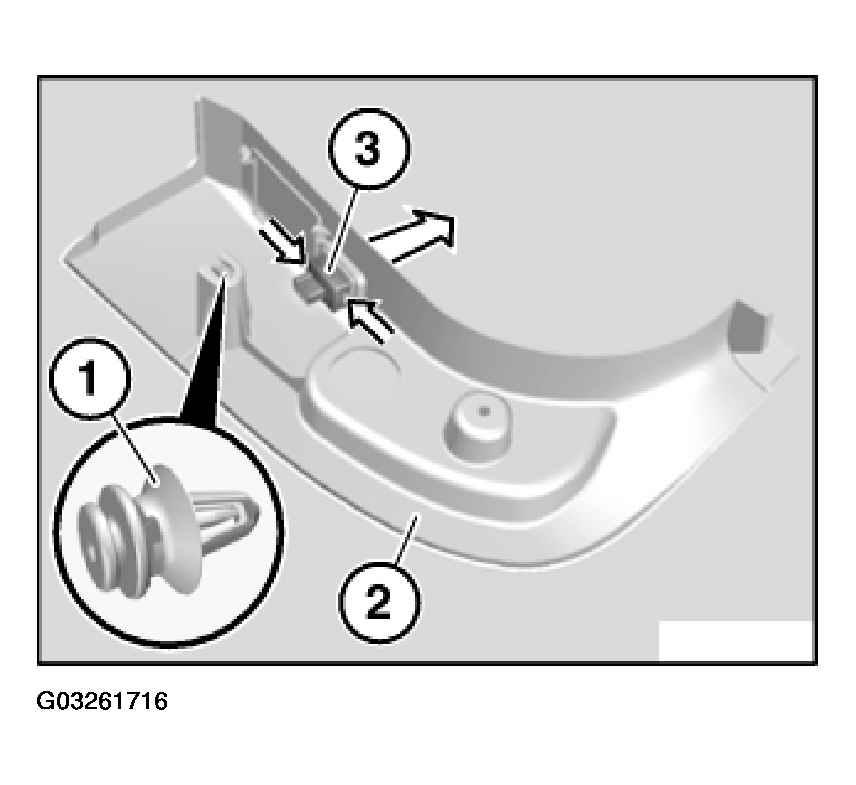

If necessary, lever out clip (1) remaining in bore.

If necessary, replace faulty clip (1).

Place footwell side trim panel on A-pillar on left (2) preinstalled with clip (1) on associated bore and clip into place.

Replacement:

Press catches and remove switch for unlocking rear lid (3).

Fig 3: Placing Footwell Side Trim Panel On A-Pillar On Left

Courtesy of BMW OF NORTH AMERICA, INC.
