51 42 001 Replacing rear left or right door trim panel (long version or from 03/2007)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL .
Remove ROCKER SWITCH FOR SIDE WINDOW OPERATION .
Remove REAR SPEAKER .
Remove SPEAKER TRIM
Remove INSIDE DOOR OPENER .
Remove INSIDE DOOR HANDLE .
Replace ARMREST
Remove DECORATIVE STRIP

Depending on version:

Remove AIRBAG MODULE FROM REAR DOOR .
Remove ROLLER SUN BLIND FROM SIDE WINDOW IN REAR DOOR .
Remove FREQUENCY GATE

Version with rear smokers' package:

If necessary, release screws (1) on rear door trim panel (2).

Fig 1: Identifying Screws And Rear Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out trim with ashtray (1) in direction of arrow from rear door trim panel (2).

If necessary, pull door trim panel (2) apart slightly at door pocket.

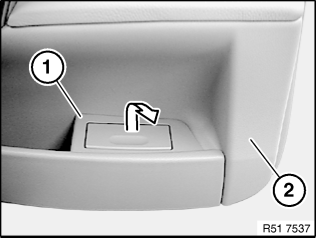

Fig 2: Identifying Ashtray And Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
