51 22 280 Removing and installing/replacing door retainer on rear left or right door

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

With the exception of the scope "Grommet at rear door stop" the operation is identical to:

Removing and installing/replacing DOOR RETAINER ON LEFT OR RIGHT FRONT DOOR .

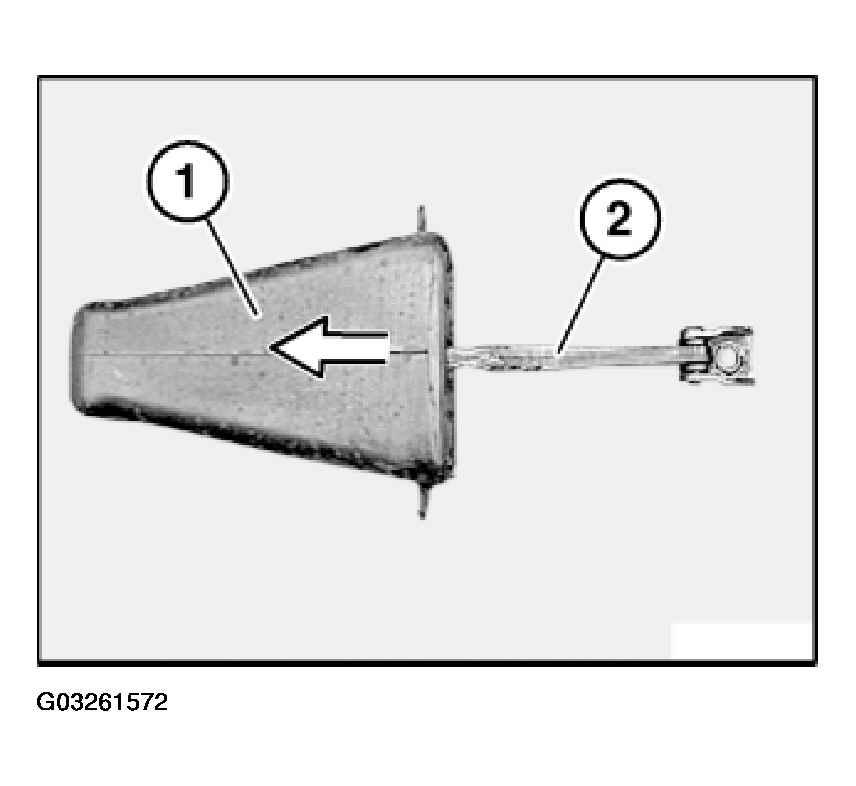

If necessary, detach grommet (1) from rear door retainer (2) in direction of arrow.

Fig 1: Removing Grommet From Rear Door Retainer

Courtesy of BMW OF NORTH AMERICA, INC.
