51 21 280 Removing and installing or replacing door stop on left or right front door

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Close door windows.
Remove SOUND INSULATION in front area only.

NOTE:

Secure front door against falling closed.

Lever out seal (1).

Unfasten screws (2 and 3).

Installation:

Tightening torque:

(2) see 9AZ in 51 21 FRONT DOOR LOCKS

(3) see 10AZ in 51 21 FRONT DOOR LOCKS

Fig 1: Removing Seal

G03261533

Courtesy of BMW OF NORTH AMERICA, INC.

Remove door brake (1) via cutout (2).

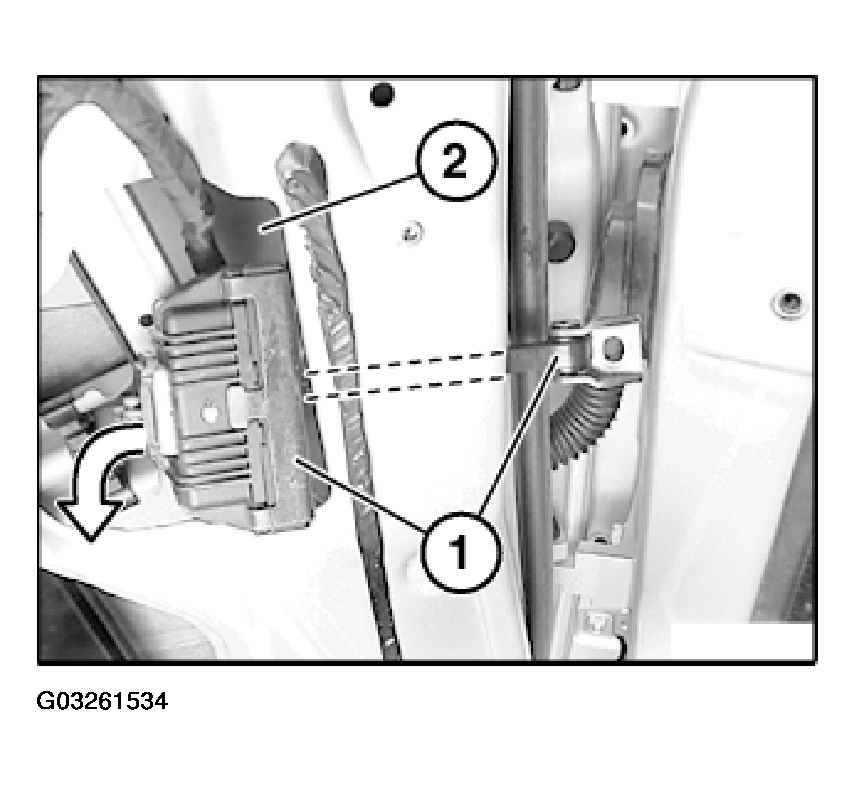

Fig 2: Removing Door Brake Via Cutout

G03261534

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of door brake (3) must not be damaged:

Hinge
Thread

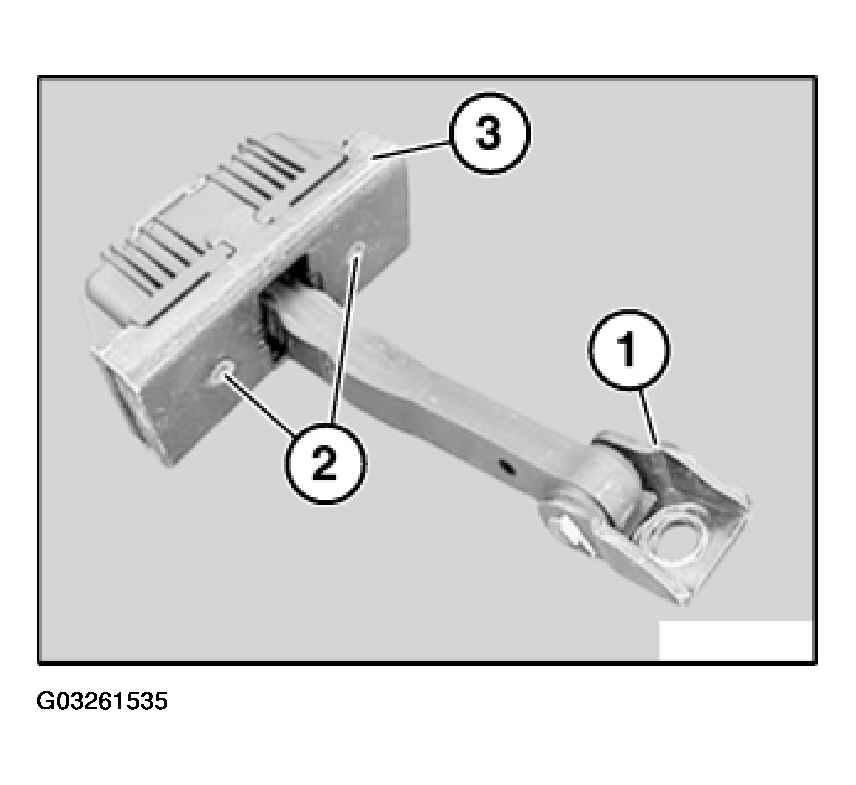

Fig 3: Identifying Parts Of Door Brake

G03261535

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seal (1) must not be damaged.

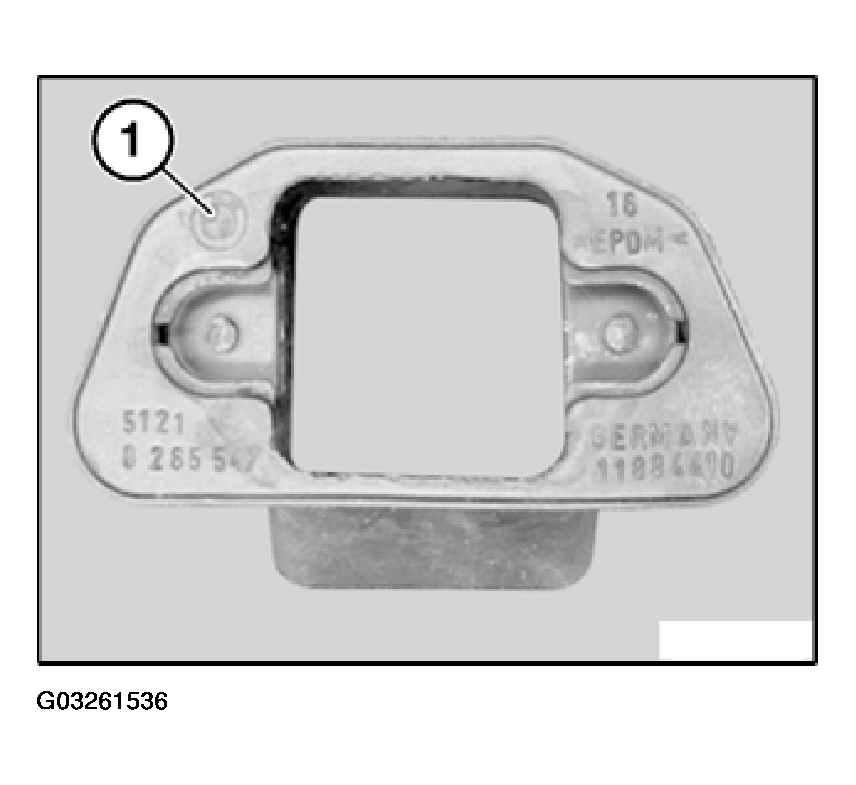

Fig 4: Installing Seal

G03261536

Courtesy of BMW OF NORTH AMERICA, INC.
