51 22 126 Removing and installing/replacing carrier for left or right outside door handle on rear door (security)

Necessary preliminary tasks:

• Remove door
• Remove DOOR WINDOW GLASS
• Remove OUTSIDE HANDLE ON REAR DOOR
• Disconnect BOWDEN CABLE FROM DOOR LOCK .
• Remove DOOR LOCK

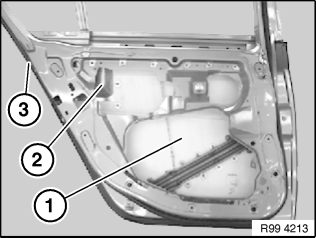

Door handle protective cover (2) is screwed to outer skin protective cover (1). Release screw (3) on outside of door frame, release screws in inner door area (see overview in next work step). Feed out outer skin protective cover upwards through window cavity.

Installation:

Shims for fastening protective mat must not jam between screw-in sleeve and screw head.

Tightening torque: see 22AZ in 51 71 SEALS AND LOOSE BODY PARTS

Fig 1: Identifying Outer Skin Protective Cover, Door handle Protective Cover, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

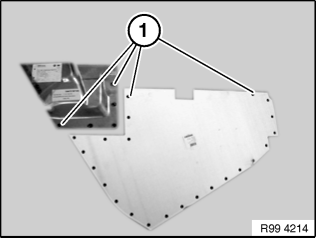

Overview of removed door protective features with screw-on holes (1).

Fig 2: Identifying Screw-On Holes

Courtesy of BMW OF NORTH AMERICA, INC.

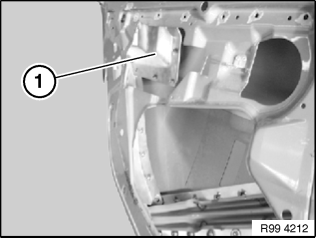

Remove door handle protective cover (1)

Tightening torque: see 22AZ in 51 71 SEALS AND LOOSE BODY PARTS

Fig 3: Identifying Door Handle Protective Cover

Courtesy of BMW OF NORTH AMERICA, INC.

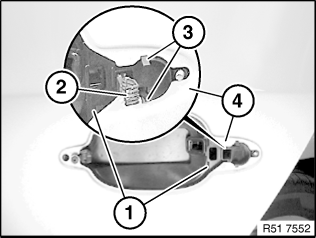

Unlock catches (3) on carrier (1).

Press carrier (1) behind door outer skin (4).

Fig 4: Installing Carrier Behind Door Outer Skin

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect plug connection on CA module.

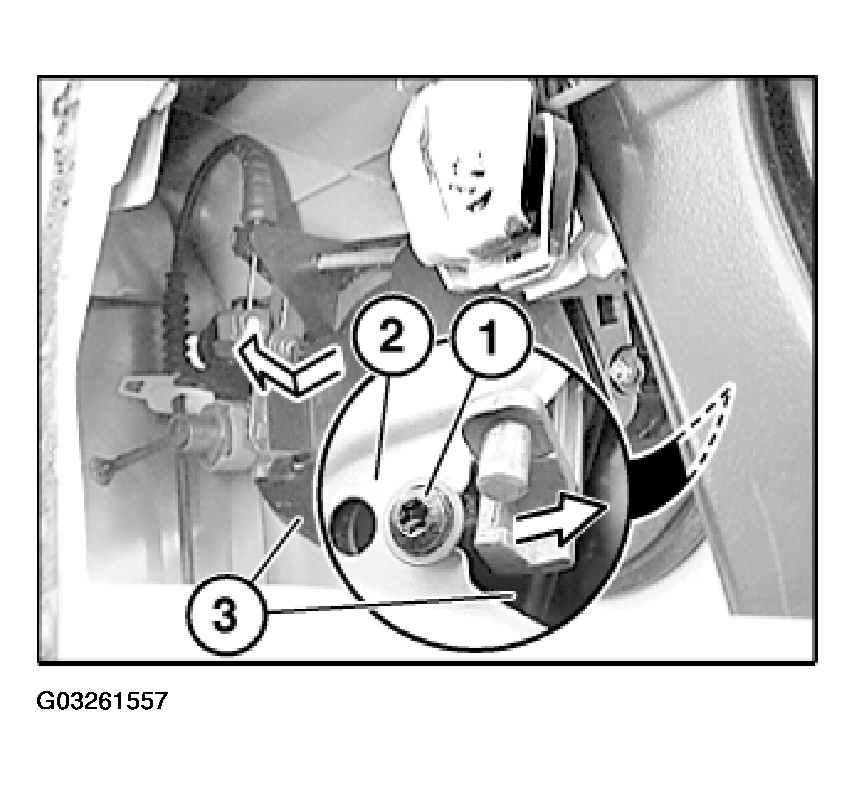

Pull carrier (3) towards rear/top until screw (1) of sheet metal slot (2) is free.

Remove carrier (3) for outside door handle.

Fig 5: Removing Carrier For Outside Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seals (1) on carrier (3) must not be damaged.

Replacement:

If necessary, remove BOWDEN CABLE FOR OUTSIDE DOOR HANDLE .

Version with Comfort Access/CA:

• Carry out PROGRAMMING/ CODING
