51 46 050 Removing and installing/replacing top trim on rear apron
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove LUGGAGE COMPARTMENT FLOOR TRIM (luggage compartment mat)
- Remove LUGGAGE COMPARTMENT WHEEL ARCH TRIM ON LEFT
- Remove RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

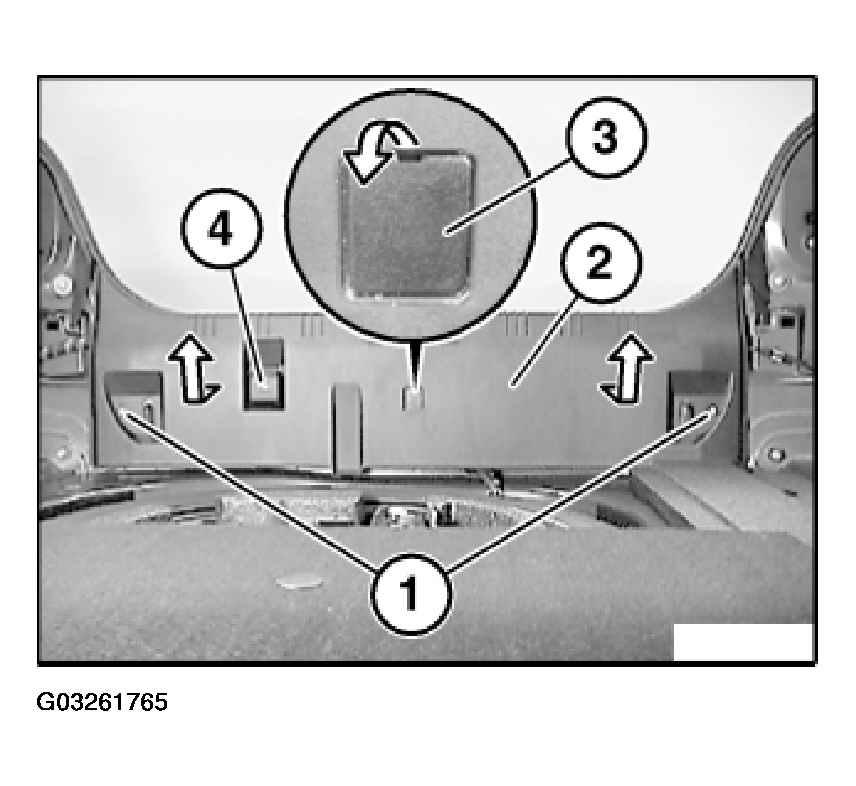

Release protective caps (1) and screws underneath.
Release cover (3) and release screw underneath.
Lever out trim (2) for rear apron inwards/upwards.
If necessary, pull plug from socket (4).
Installation:
Guides of trim for rear apron (2) in area of load edge must not be damaged.
Make sure rear lid seal is correctly seated.
