51 47 151 Removing and installing / replacing left luggage compartment wheel arch trim
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
Version without through-loading system:
- Remove BACKREST FOR REAR SEAT .
- Remove LUGGAGE COMPARTMENT TRIM ON SIDE PANEL .
Version with through-loading system only:
- Fold down backrest for left rear seat.

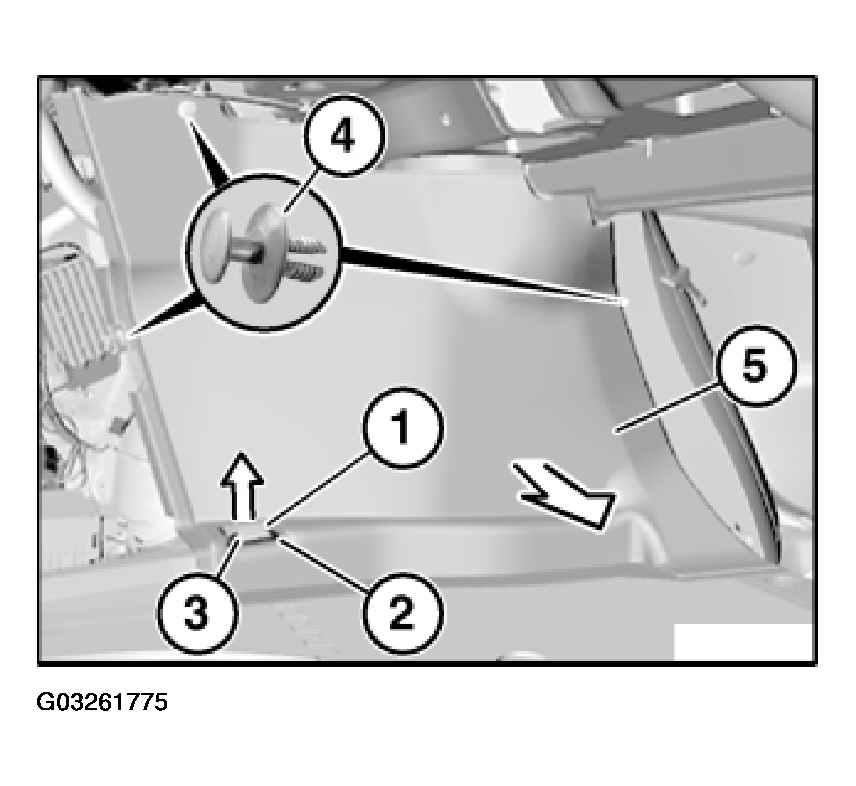

Lever out lashing eye trim (1) in direction of arrow and remove.
Release screw (3) and remove lashing eye (2).
Release expansion rivets (4) and remove luggage compartment wheel arch trim (5) in direction of arrow.
