51 16 366 Removing and installing right glovebox with housing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove footwell side trim panel on A-pillar on right. See 51 43 075 Removing And Installing/Replacing Side Trim Panel, Footwell, On A-Pillar, Right .
If necessary, remove trim for instrument panel at bottom right. See 51 45 181 Removing And Installing/Replacing Bottom Right Trim For Instrument Panel .

NOTE:

Open glovebox.

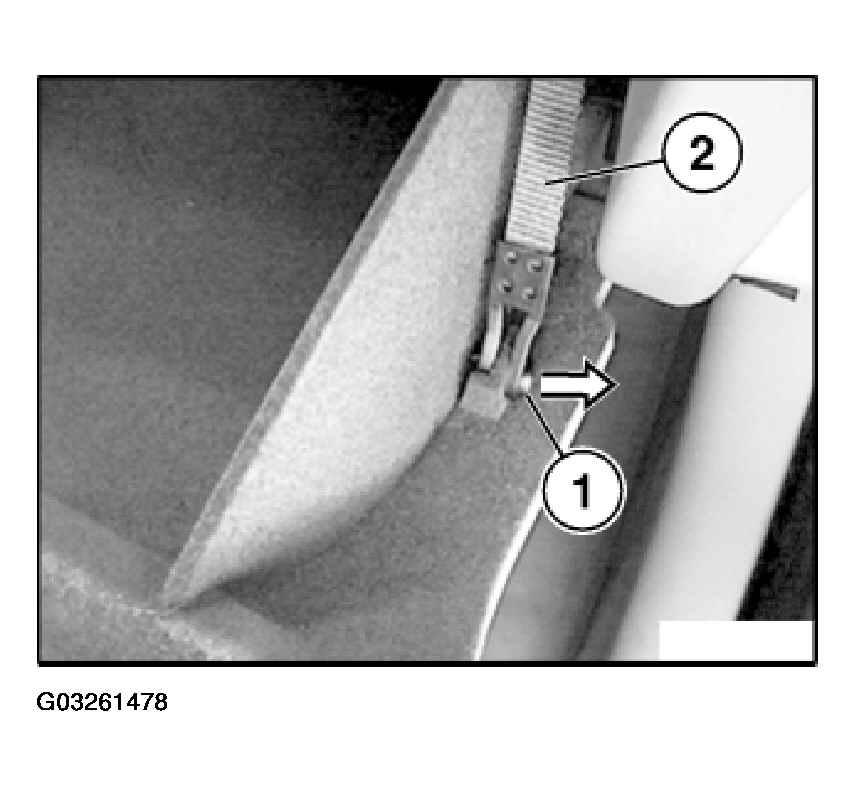

Unclip pin (1) from retaining strap (2).

Fig 1: Removing Pin Clip From Retaining Strap

Courtesy of BMW OF NORTH AMERICA, INC.

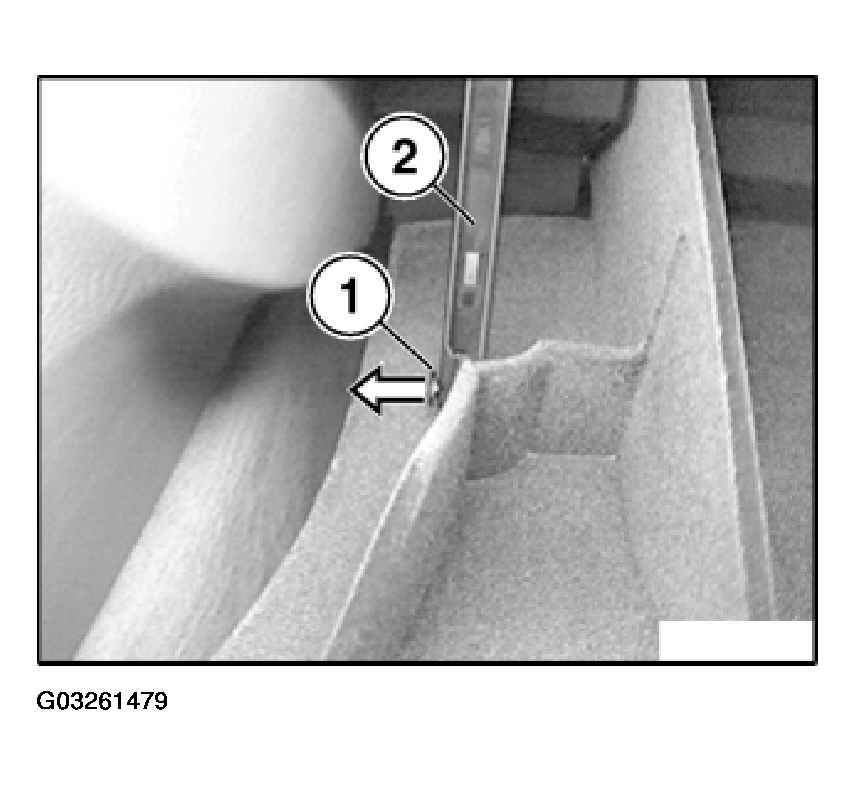

Unclip pin (1) from shock absorber (2).

Fig 2: Removing Pin Clip From Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

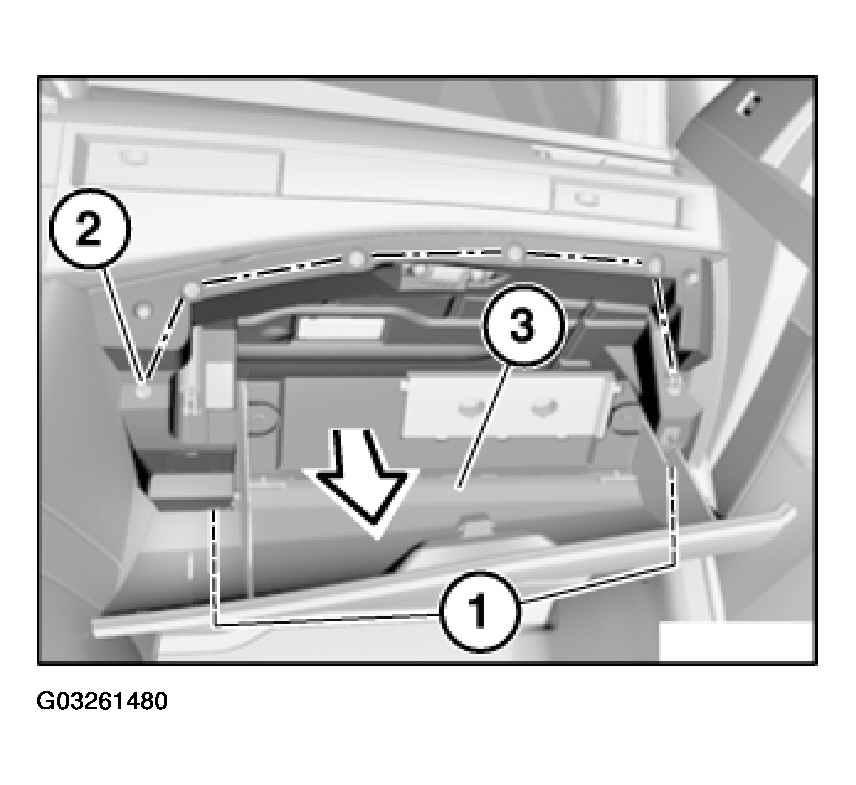

Release screws (1).

Release screws (2) and pull back right glovebox with housing (3).

Disconnect associated plug connections and remove right glovebox with housing (3).

Fig 3: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.
