51 16 360 Removing and installing/replacing right glovebox

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Open glovebox.

Unclip pin (1) from retaining strap (2).

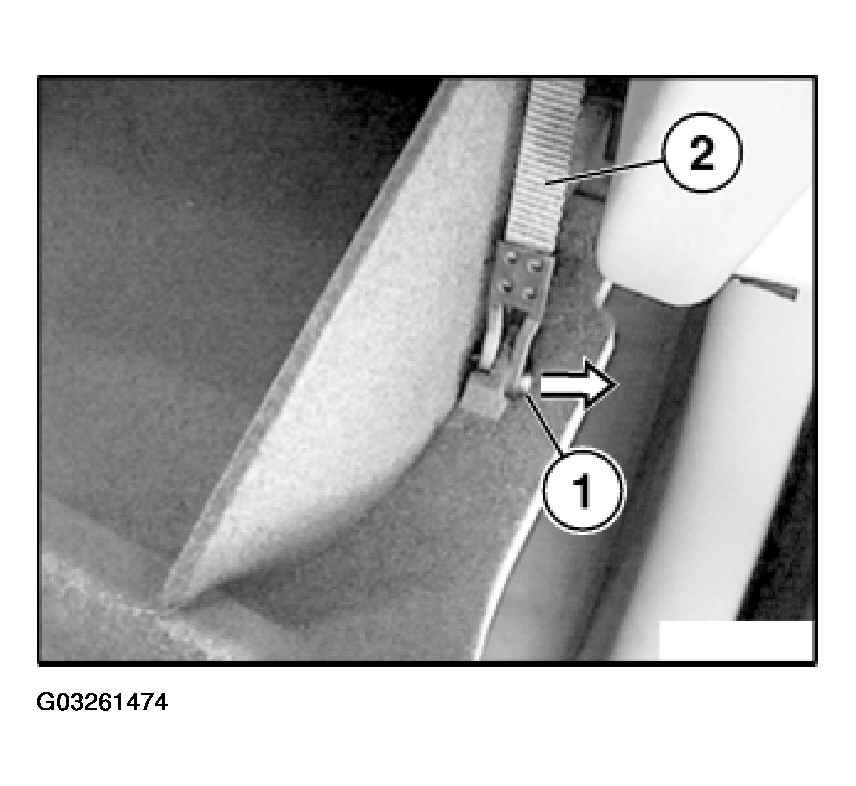

Fig 1: Removing Pin Clip From Retaining Strap

G03261474

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip pin (1) from shock absorber (2).

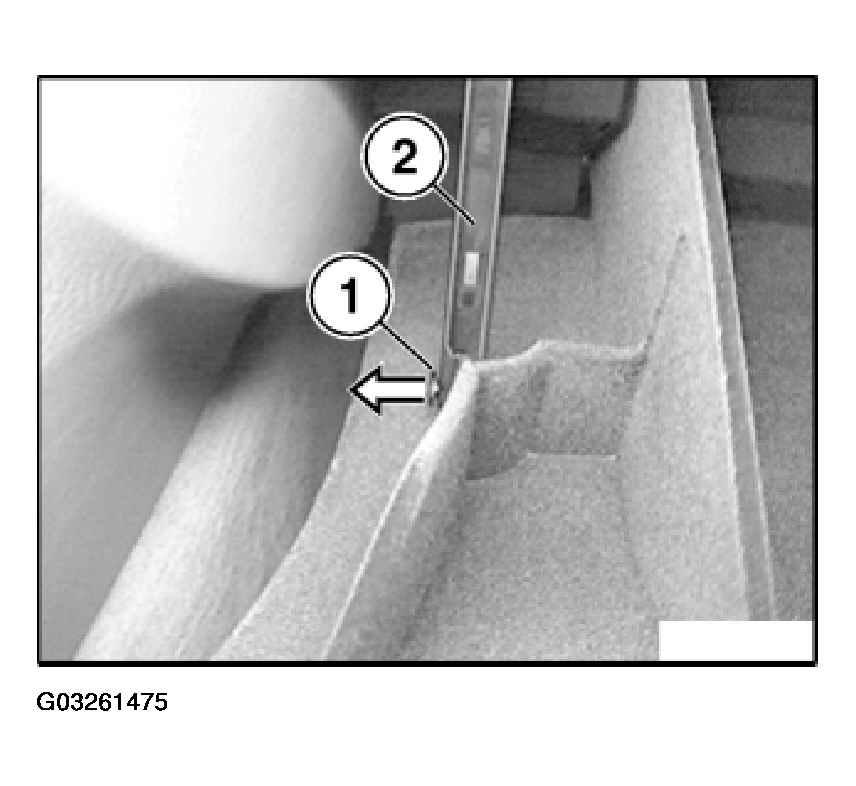

Fig 2: Removing Pin Clip From Shock Absorber

G03261475

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Close glovebox (3) and secure against falling out.

Release screws (1) and remove counter-support (2).

Open glovebox (3) and remove.

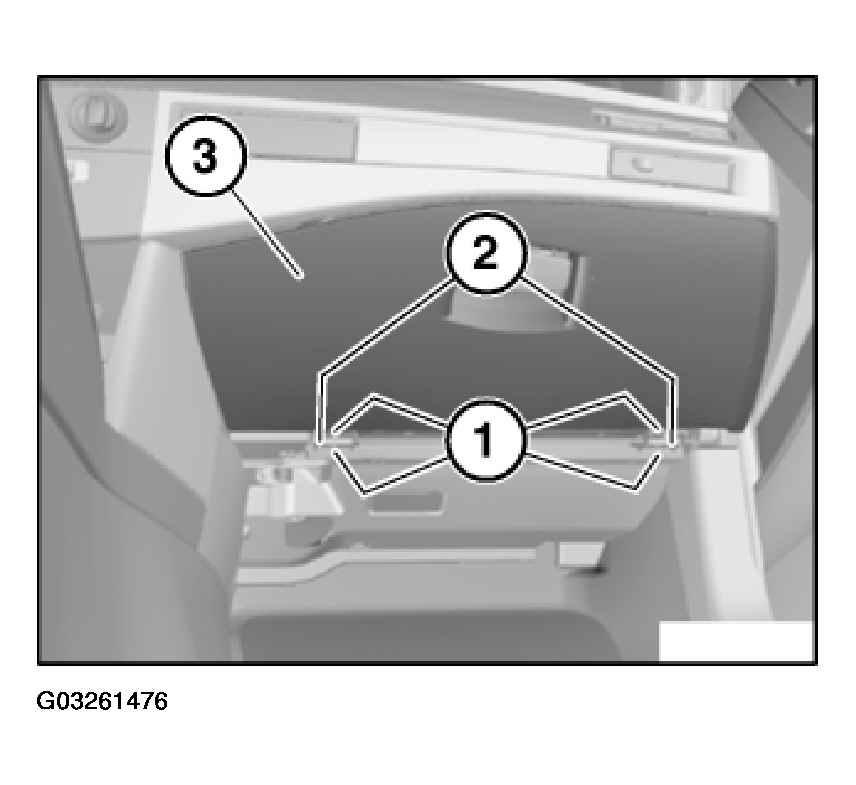

Fig 3: Removing Counter-Support

G03261476

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure counter-support (1) is correctly seated on chamfered faces of shaft (2).

If necessary, turn shaft (2) accordingly.

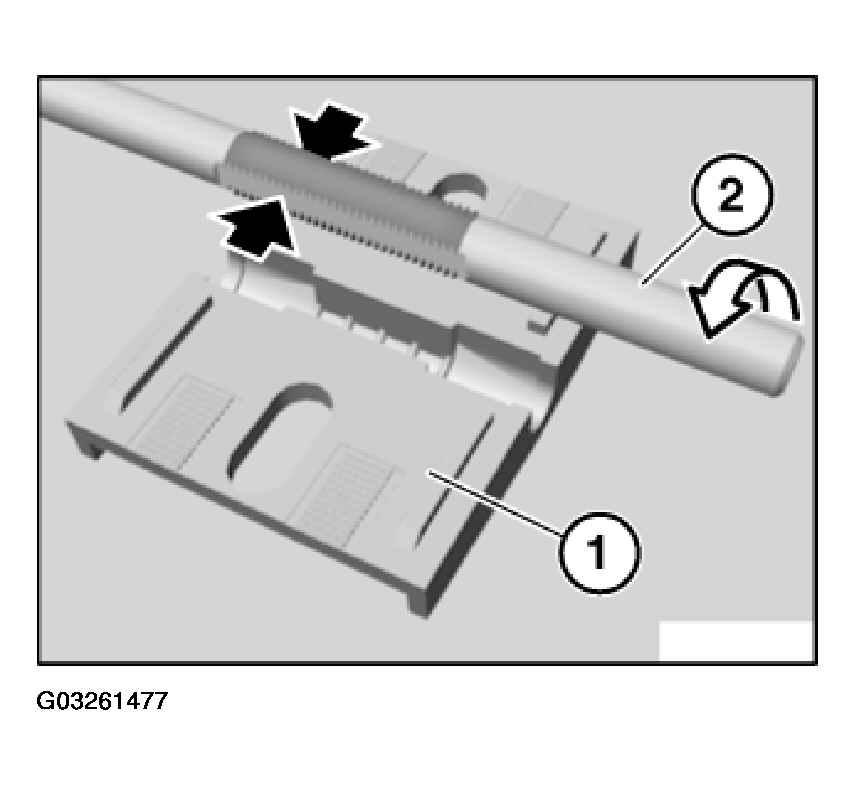

Fig 4: Turning Shaft Accordingly

G03261477

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove lock for right glovebox. See 51 16 340 Removing And Installing/Replacing Lock For Right Glovebox .
