51 16 340 Removing and installing/replacing lock for right glovebox

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Open glovebox.

Release screws (1).

Remove lower section of lock for right glovebox (3).

Remove upper section of lock for right glovebox (2).

Fig 1: Removing Upper Section Of Lock For Right Glovebox

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Insert ignition key (1) in lock cylinder (3).

Turn ignition key (1) slightly and pull out lock cylinder (3) with ignition key (1) in direction of arrow.

If necessary, force catches (2) open.

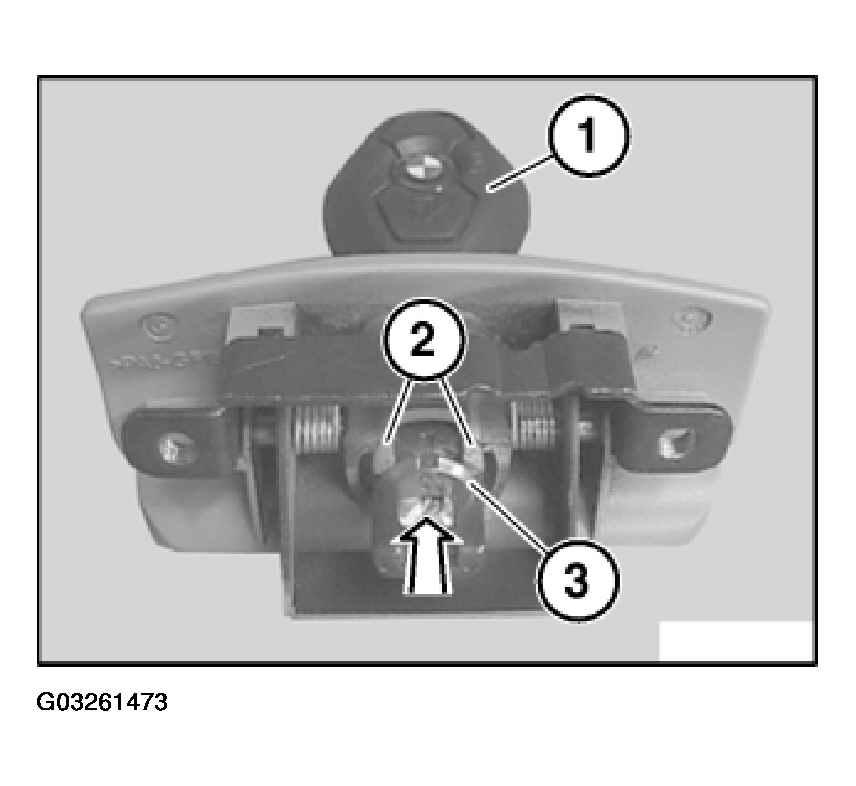

Fig 2: Inserting Ignition Key In Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
