51 16 325 Removing and installing/replacing fastener for center armrest
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks : Remove STORAGE COMPARTMENT .

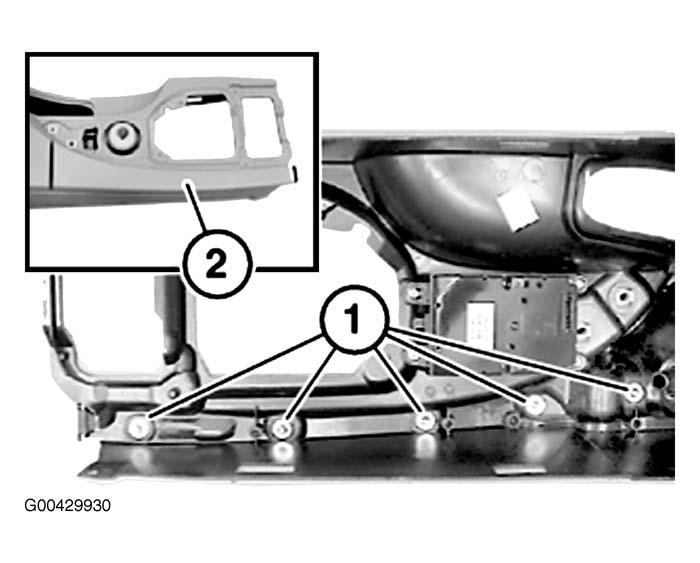

Release screws (1) on inside of storage compartment and remove trim (2).

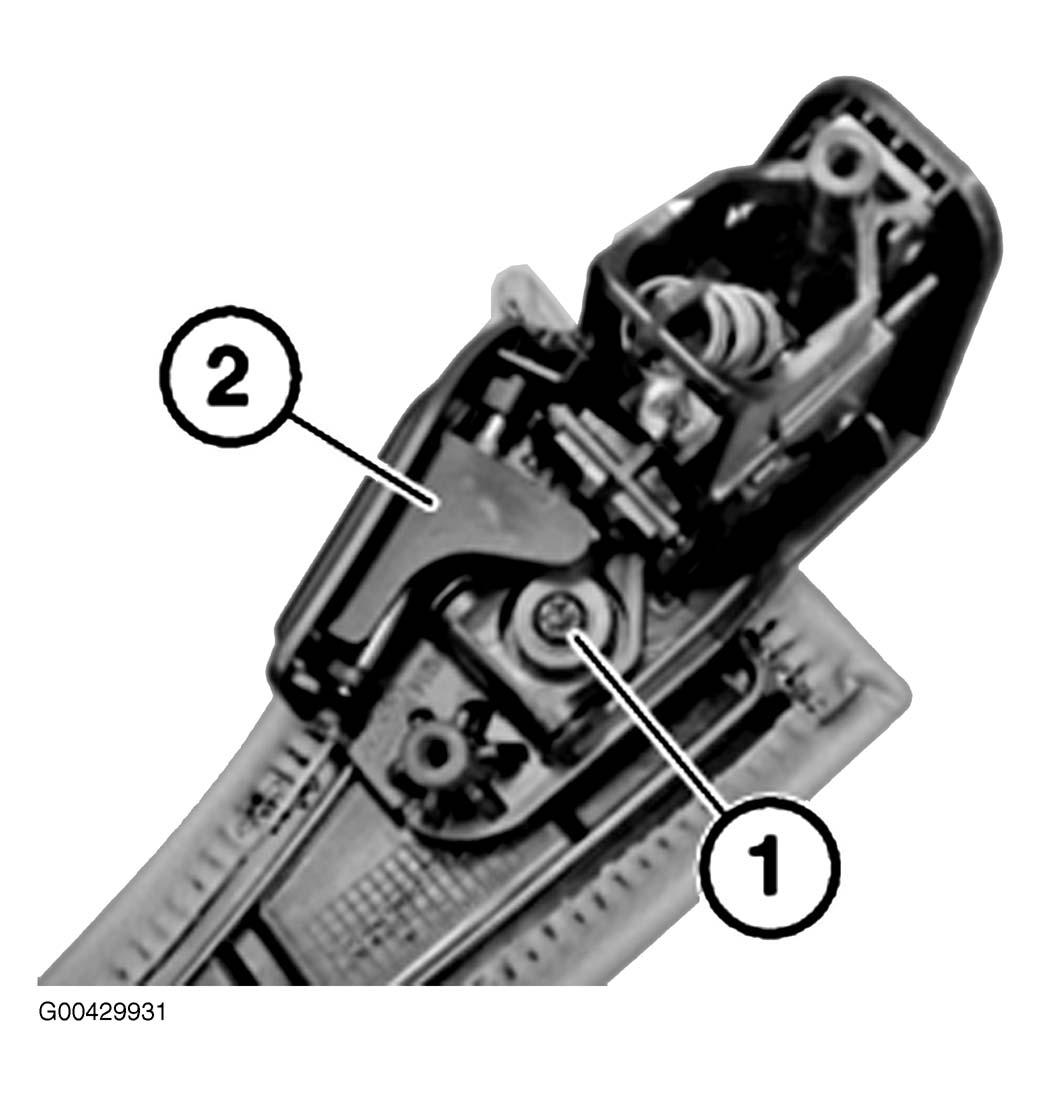

Release screw (1) and remove fastener (2).
