51 16 155 Replacing locator for front ashtray insert (from 03/2007)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove bottom middle TRIM FOR INSTRUMENT PANEL

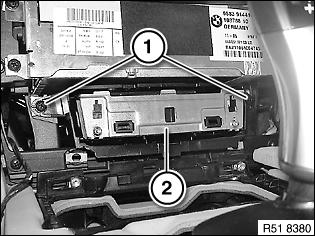

ease screws (1).

Pull out locator (2) and disconnect associated plug connection.

Fig 1: Identifying Locator And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

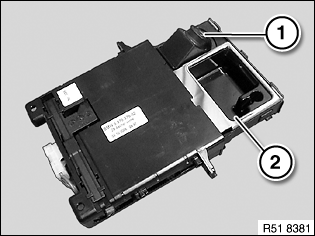

If necessary, remove cigarette lighter (1) and ashtray insert (2).

Fig 2: Identifying Cigarette Lighter And Ashtray Insert

Courtesy of BMW OF NORTH AMERICA, INC.
