51 45 314 Removing and installing/replacing center (bottom) instrument panel trim

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIDDLE TRIM FOR INSTRUMENT PANEL
Remove TRIM FOR ASHTRAY

Release trim (1) with special tool 00 9 317 first at top from retainers (2), then at bottom from pin (3).

Disconnect associated plug connections and remove trim (1).

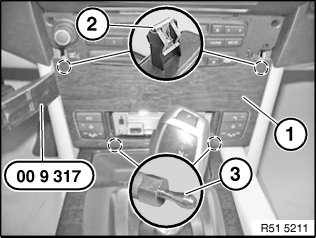

Fig 1: Using Special Tool 00 9 317 To Release Trim From Retainers And Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainers (1) and pins (3) must not be damaged.

Replacement:

Remove SWITCH (2) .

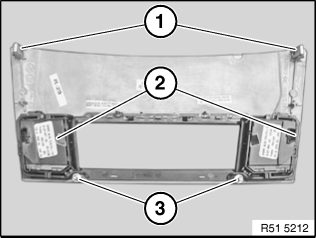

Fig 2: Identifying Switch, Retainers, And Pins

Courtesy of BMW OF NORTH AMERICA, INC.
