51 16 045 Removing and installing/replacing retaining ring on left or right door mirror

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove HOUSING ON DOOR MIRROR .
Remove DRIVE FOR ELECTRICALLY ADJUSTABLE DOOR MIRROR .

NOTE:

Version with door mirror light:

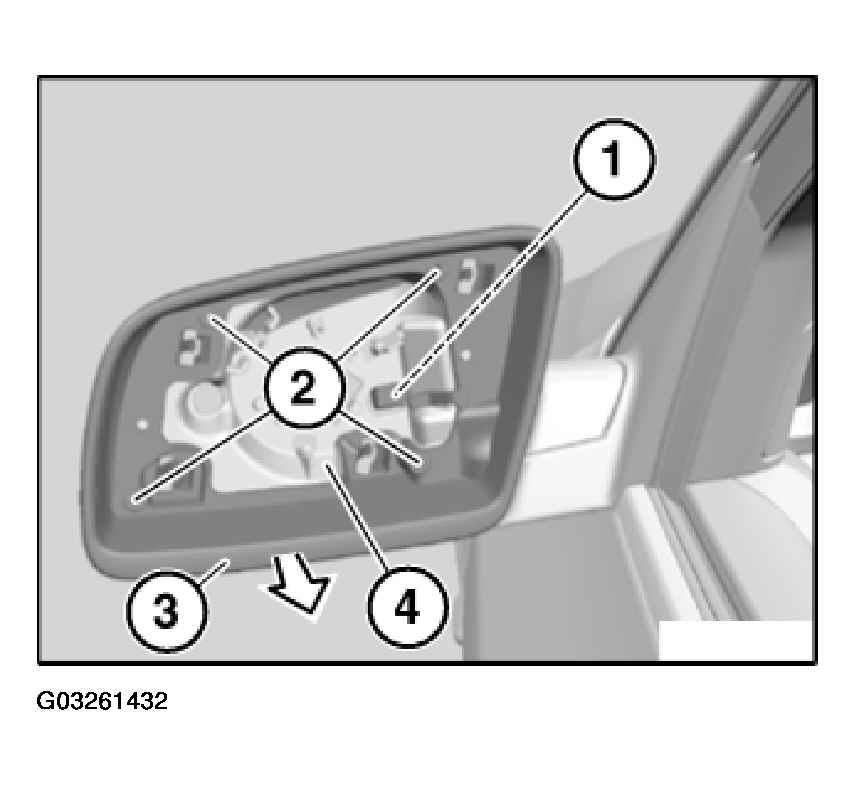

Disconnect plug connection (1).

Release screws (2) and remove complete retaining ring on door mirror (3) from carrier (4).

Installation:

Version with door mirror light:

Ensure correct cable routing.

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

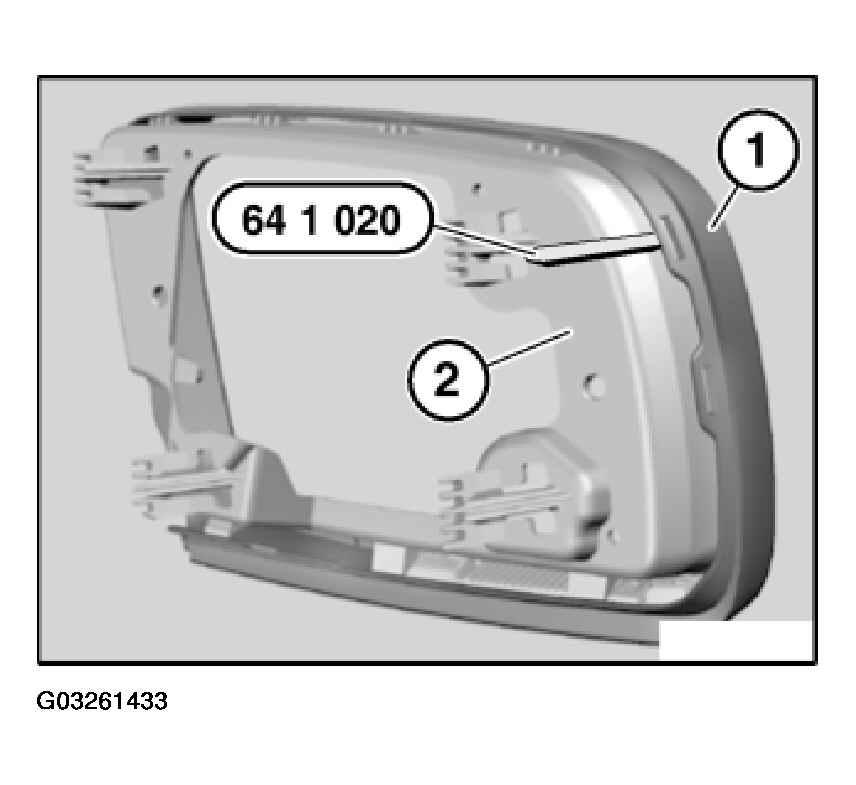

Unclip retaining ring on door mirror (1) with special tool 64 1 020 all round and remove from retaining plate (2).

Fig 2: Removing Retaining Ring Clip On Door Mirror

Courtesy of BMW OF NORTH AMERICA, INC.
