51 16 040 Removing and installing/replacing housing on left or right door mirror

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIRROR GLASS .

NOTE:

Housing on door mirror (2) is secured without play by four multitooth catches (1) on retaining ring (3).

Secure housing on door mirror (2) against falling out.

Unlock multitooth catches (1) with a screwdriver.

Unclip housing on door mirror (2) forwards from retaining ring (3) and remove.

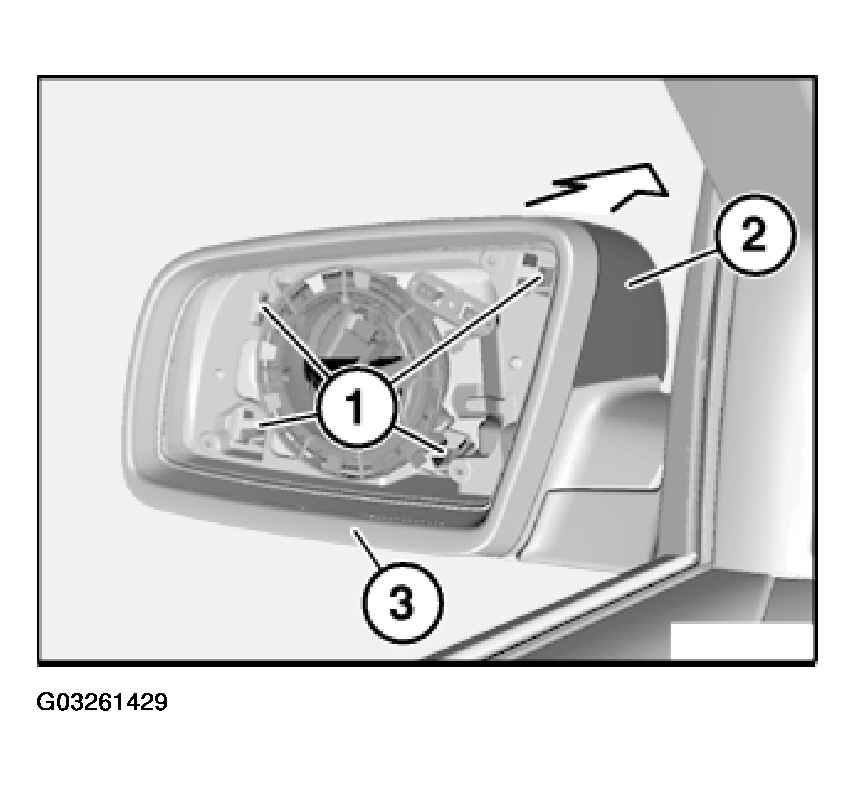

Fig 1: Installing Housing On Door Mirror

G03261429

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Multitooth catches (1) and guide (2) on housing on door mirror (3) must not be damaged.

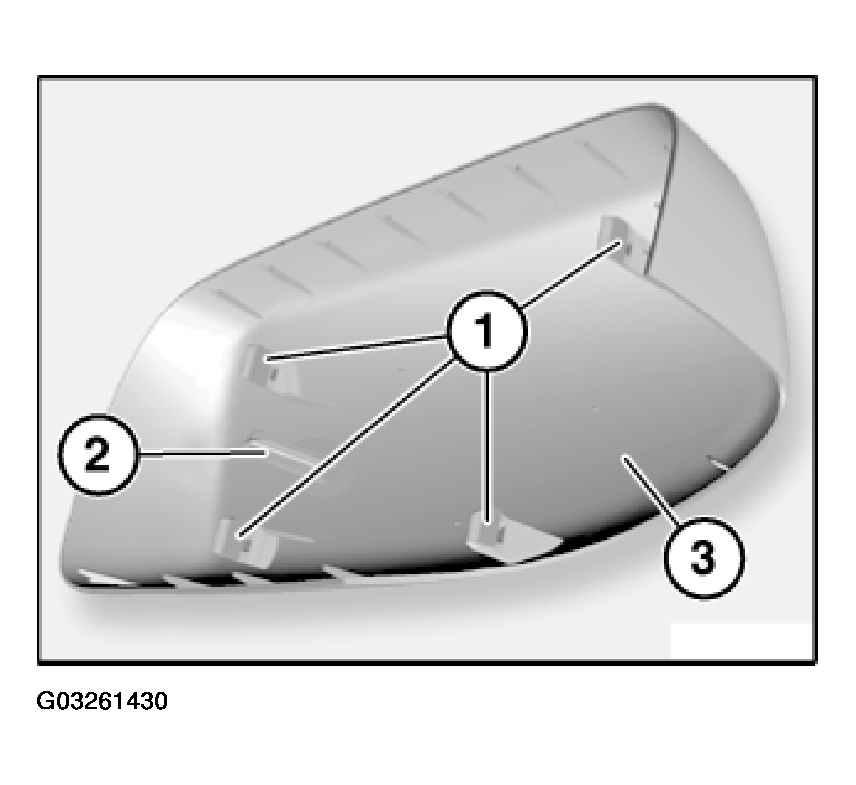

Fig 2: Identifying Multitooth Catches And Guide

G03261430

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fixtures (1) on retaining plate (2) must not be damaged.

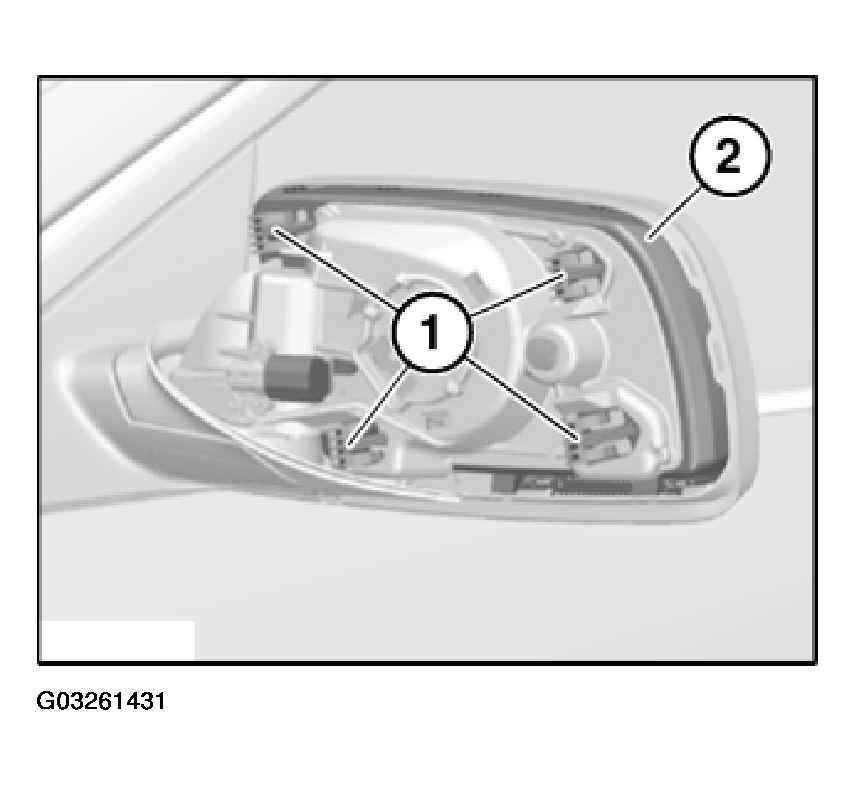

Fig 3: Installing Retaining Plate

G03261431

Courtesy of BMW OF NORTH AMERICA, INC.
