51 16 045 Removing and installing/replacing retaining ring on left or right door mirror (M5)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIRROR GLASS

Release screws (1).

Release retaining ring (2) at catches (3) and remove towards rear.

Tightening torque: see 14AZ in 51 16 MIRRORS, FINISHERS, ASHTRAYS, CONSOLES

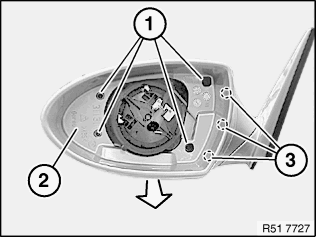

Fig 1: Identifying Screws, Retaining Ring, And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on door mirror (2) must not be damaged.

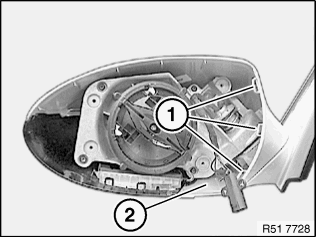

Fig 2: Identifying Door Mirror And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
