51 16 041 Removing and installing/replacing cover cap on left or right door mirror

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove retaining ring on door mirror .

Release screws (1).

Tightening torque: see 9AZ in 51 16 MIRRORS, FINISHERS, ASHTRAYS, CONSOLES

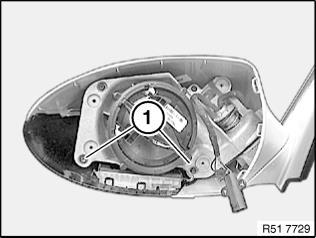

Fig 1: Release Screws (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Release cover cap (1) from catches (2) and feed out in direction of arrow. Disconnect connector (3). Installation: Make sure wiring of door mirror light is correctly routed.

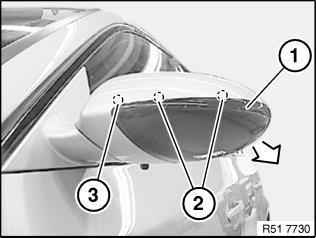

Fig 2: Release Cover Cap (1) From Catches (2) And Feed Out In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

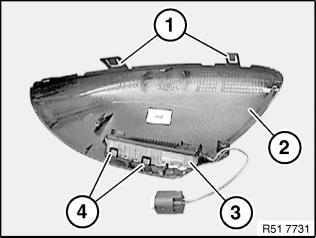

Installation: Catches (1) on cover cap (2) must not be damaged. 3 - Light 4 - Catches.

Fig 3: Catches (1) On Cover Cap (2) Must Not Be Damaged

Courtesy of BMW OF NORTH AMERICA, INC.
