51 16 040 Removing and installing/replacing housing on left or right door mirror (M5)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR-VIEW MIRROR on front door
Remove COVER CAP FROM DOOR MIRROR

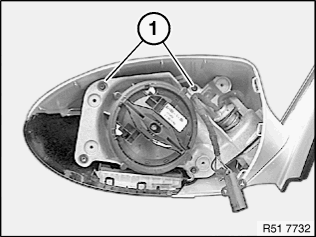

Release screws (1).

Tightening torque: see 9AZ in 51 16 MIRRORS, FINISHERS, ASHTRAYS, CONSOLES

Fig 1: Identifying Screws

G00530634

Courtesy of BMW OF NORTH AMERICA, INC.

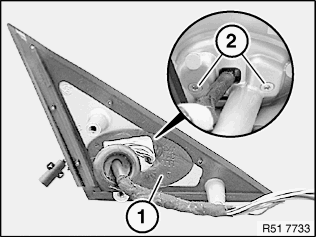

Remove foam material (1) and release screws (2) underneath.

Tightening torque: see 15AZ in 51 16 MIRRORS, FINISHERS, ASHTRAYS, CONSOLES

Fig 2: Identifying Foam Material And Screws

G00530635

Courtesy of BMW OF NORTH AMERICA, INC.

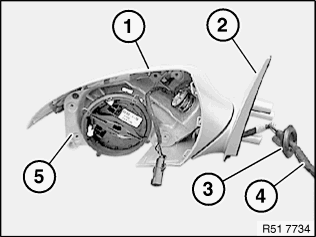

IMPORTANT: Make a note of coding of plugs on cable (4).

Disconnect cable (4) from plug.

Detach grommet (3) from cable (4).

Detach housing (1) from retaining plate (2).

Feed cable (4) through retaining plate (2).

Remove housing (1) from carrier (5).

Fig 3: Identifying Carrier, Cable, Grommet, Retaining Plate, And Housing
