51 71 447 Removing and installing or replacing panel for cover on left or right side member

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Detach wheel arch cover from front/rear side member cover
See FRONT LEFT OR RIGHT WHEEL ARCH COVER and REAR LEFT OR RIGHT WHEEL ARCH COVER .

Release screws (1).

Fig 1: Removing Screws

G04752873

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip rear panel (1) from holder (3).

Unclip panel (1) at holders (2) and remove in direction of arrow.

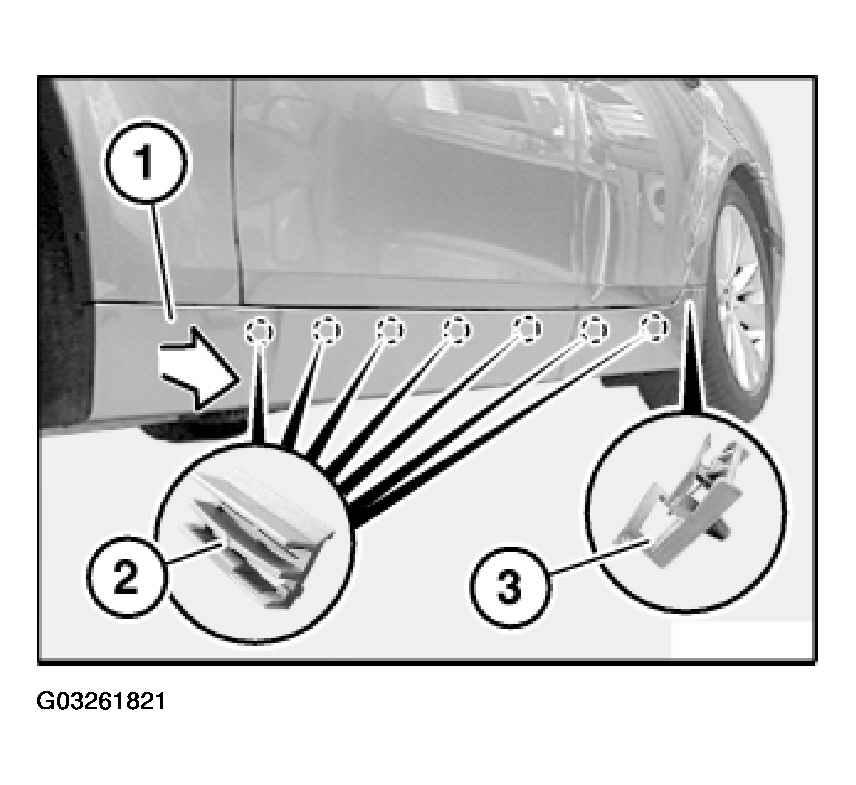

Fig 2: Unclipping Panel (1) At Holders (2) And Removing In Direction Of Arrow

G03261821

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on holder (2) must not be damaged.

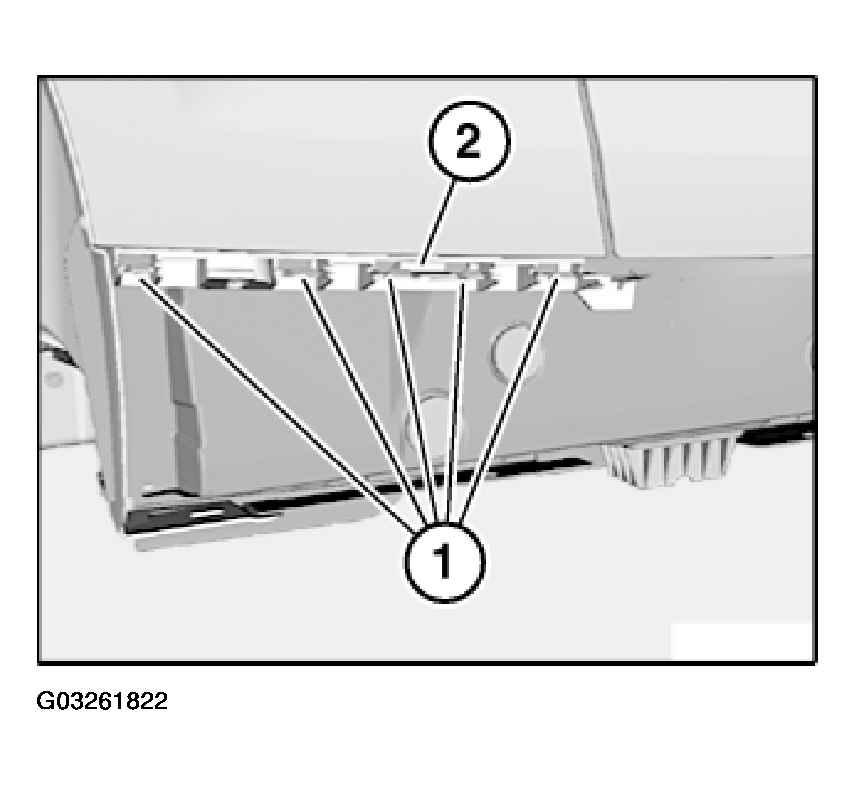

Fig 3: Ensuring Catches (1) On Holder (2) Are Not Damaged

G03261822

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, detach holders (1 and 3) from body and fit on panel (2).

If necessary, replace faulty holders (1 and 3).

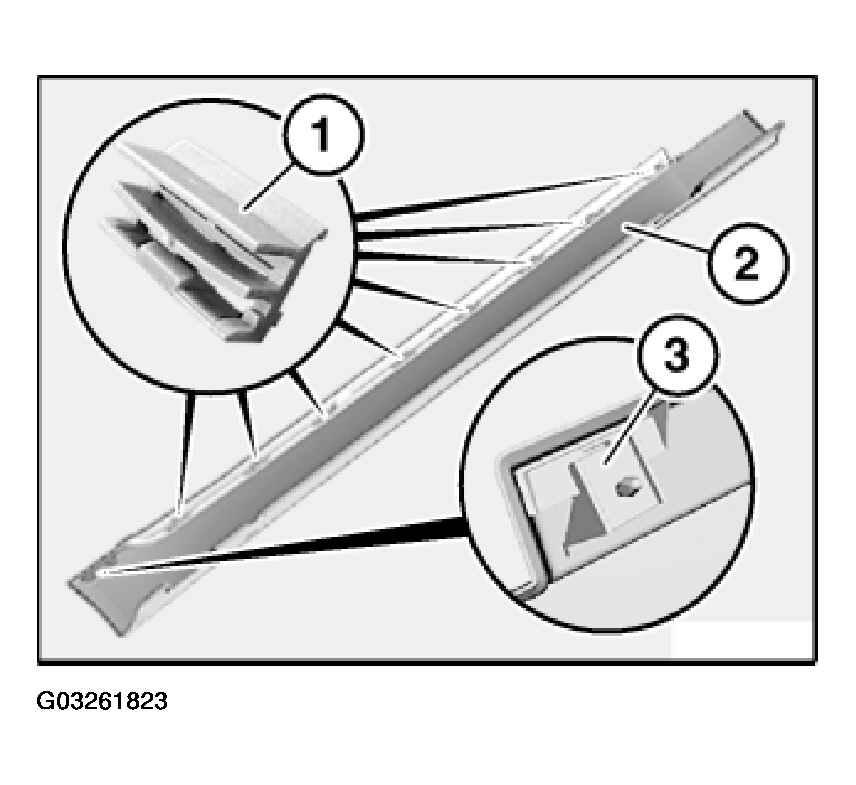

Fig 4: Detaching Holders (1 And 3) From Body And Fitting On Panel (2)

G03261823

Courtesy of BMW OF NORTH AMERICA, INC.
