51 45 310 Removing and installing (replacing) center trim for instrument panel (up to 03/2007)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DECORATIVE STRIP ON INSTRUMENT PANEL ON RIGHT .

Release screws (1).

NOTE:

Feed in screwdriver (2) of sufficient length as illustrated ahead of trim for instrument panel (4).

Unclip upper retaining points (3) by pressing screwdriver (2) towards front.

Unclip lower retaining points (5).

Unlock associated plug connections and disconnect.

Remove center trim for instrument panel (4).

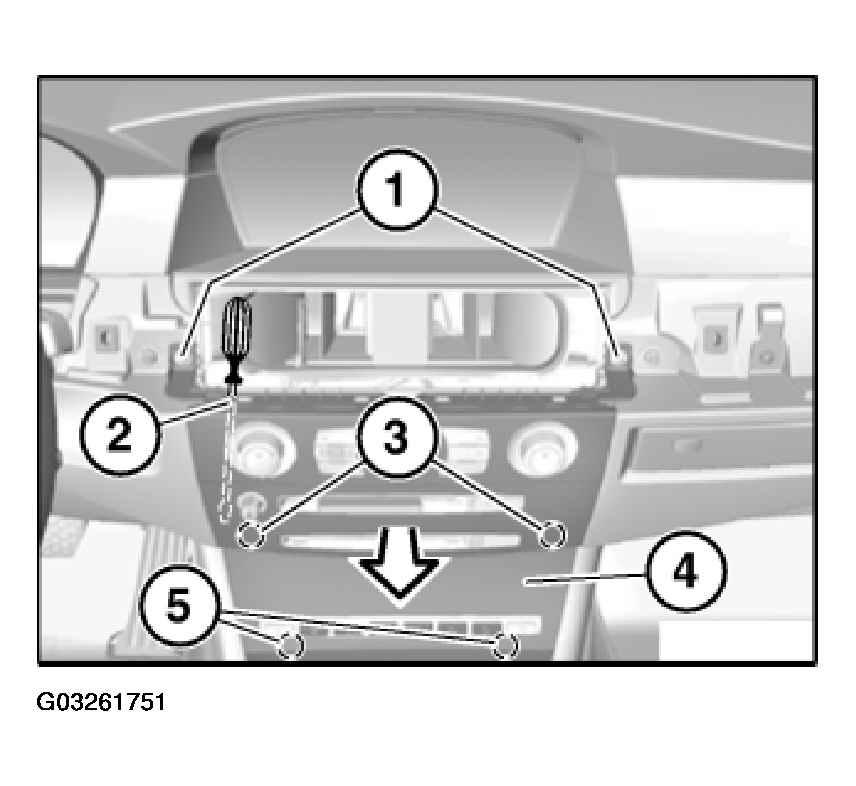

Fig 1: Removing Center Trim For Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove CONTROL PANEL FOR HEATING - A/C SYSTEM .
Remove CENTER CONSOLE SWITCH CENTER .
