51 45 380 Removing and installing (replacing) right decorative strip on instrument panel

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SWITCH FOR HAZARD WARNING SYSTEM/CENTRAL LOCKING .

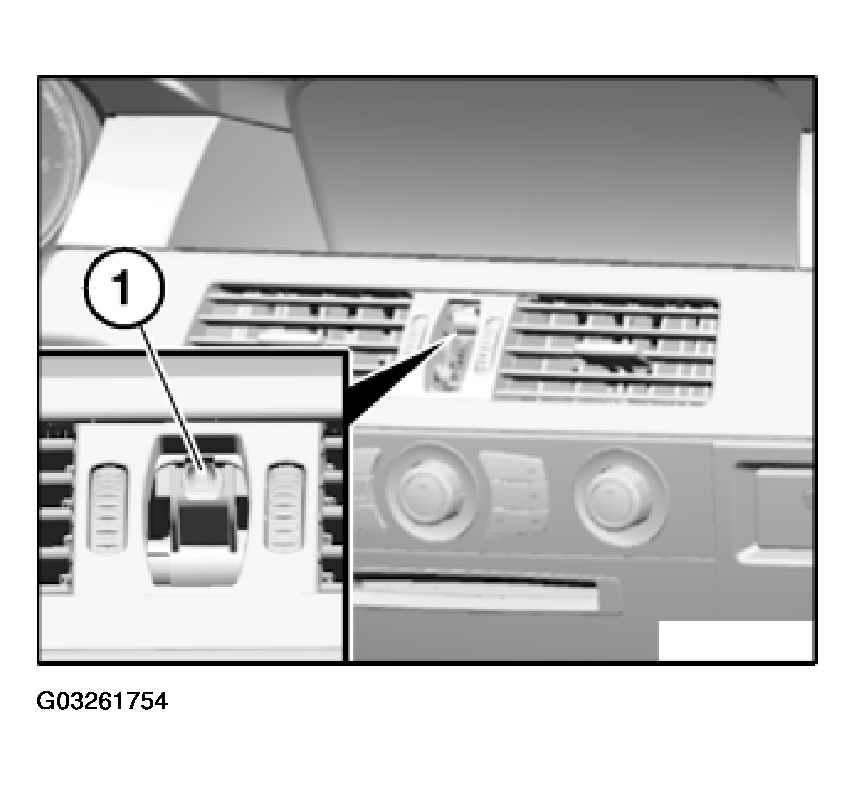

Unscrew bolt (1).

Fig 1: Removing Switch For Hazard Warning System/Central Locking

G03261754

Courtesy of BMW OF NORTH AMERICA, INC.

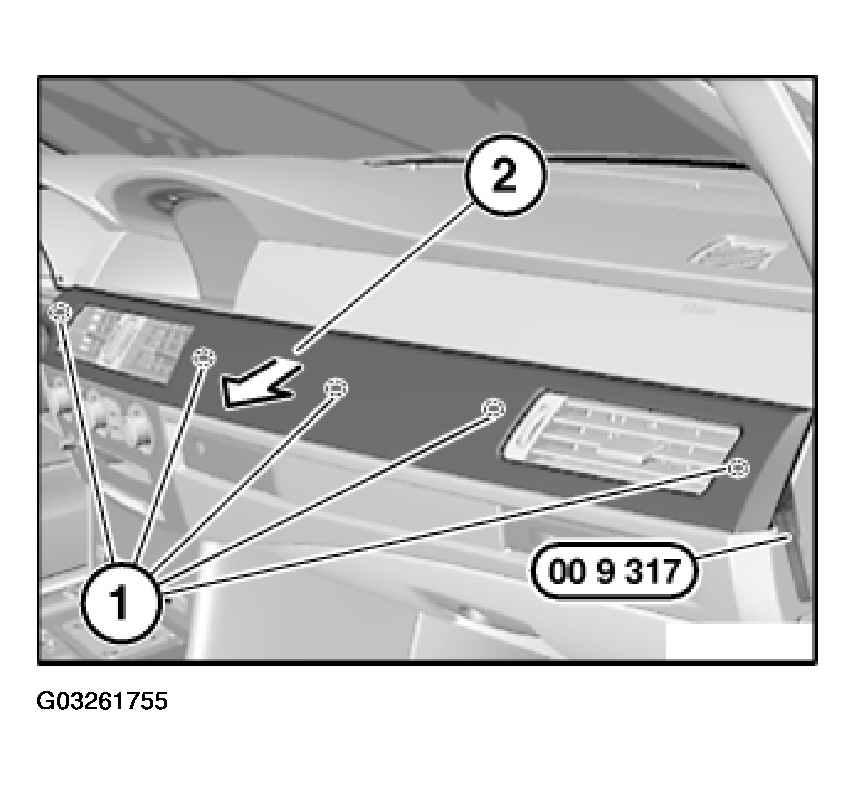

Lever out right decorative strip on instrument panel (2) at retaining points (1) with special tool 00 9 317 .

Disconnect associated plug connection and remove right decorative strip on instrument panel (2).

Fig 2: Disconnecting Associated Plug Connection

G03261755

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) must be seated in associated mountings.

If necessary, remove clips (1) remaining on right decorative strip for instrument panel.

Replace damaged clips (1).

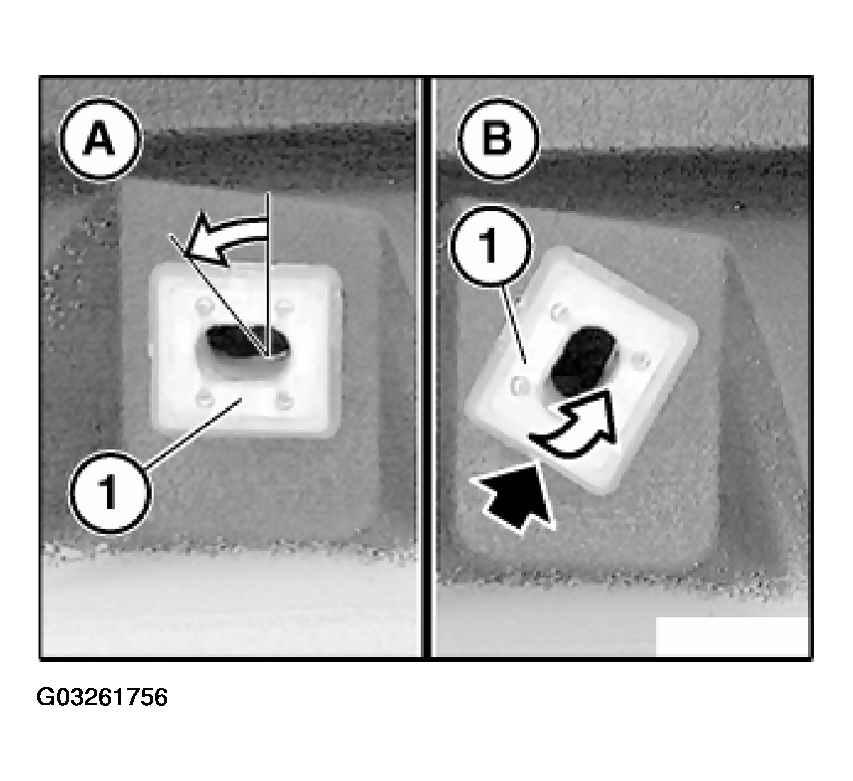

Turn clip (1) with screwdriver to left by approx. 60°.
Lever out clip (1) from below.

Fig 3: Removing Clip With Screwdriver

G03261756

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove RIGHT FRESH-AIR GRILL .
Remove CENTER FRESH-AIR GRILL .
