51 41 081 Replacing armrest on front left or right door trim panel (long version or from 03/2007)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT DOOR TRIM PANEL
Driver's side:
- Remove HANDLE RECESS
Passenger side:
- Remove TOGGLE SWITCH
- Remove DOOR HANDLE
IMPORTANT:
Only drill down to door trim panel area so as not to damage the contact surface.
Armrest is only welded to door trim panel during initial fitting; if necessary, release nuts in place of welding spots.

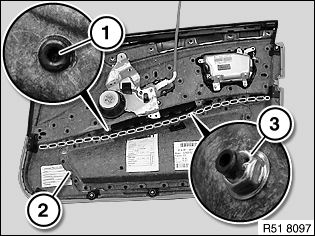

Drill out welding spots (1) on door trim panel (2) with 8 mm dia. welding spot drill bit.
Remove armrest.
Installation:
Secure armrest with nuts (3).
