51 41 025 Replacing handle recess on front left or right door trim panel (long version or from 03/2007)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM PANEL
Remove SPEAKER TRIM

Release screws (1).

Press down retainers (2) and slide handle recess (3) through in outward direction.

Fig 1: Identifying Screws, Retainers, And Handle Recess

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainers (1) on handle recess (2) must not be damaged.

Replacement:

Remove TOGGLE SWITCH (3) .

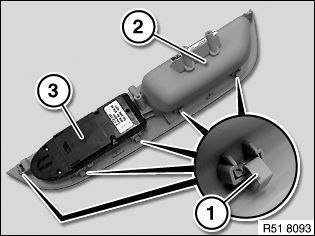

Fig 2: Identifying Retainers, Toggle Switch, And Handle Recess

Courtesy of BMW OF NORTH AMERICA, INC.
