51 41 060 Removing and installing/replacing armrest on front left or right door trim panel (up to 03/2007)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM PANEL
Remove INSIDE DOOR HANDLE

Release nuts (1 and 2).

Remove retaining plate from door trim panel (4).

Installation:

Retaining plate must be positioned over pin (3).

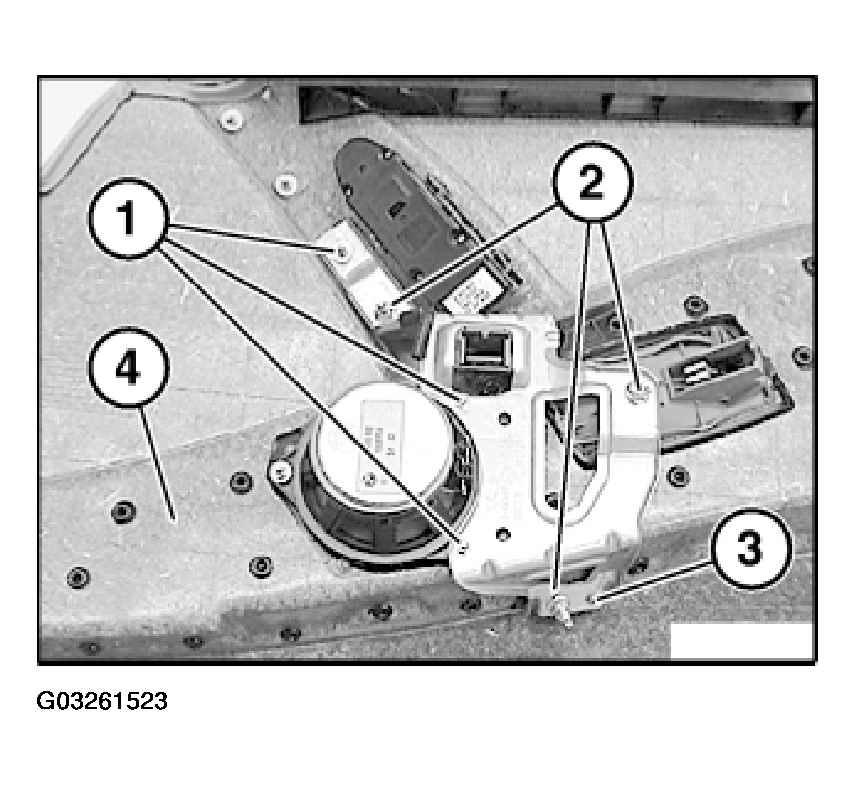

Fig 1: Removing Retaining Plate From Door Trim Panel

G03261523

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Only drill down to door trim panel area (2) so as not to damage the contact surface.

Drill out welding spots (1) on door trim panel (2) with 8 mm dia. welding spot drill bit.

Release nut (3) and remove armrest.

NOTE:

Armrest is welded to door trim panel only on initial installation.

If necessary, release nuts (3) instead of welding spots (1).

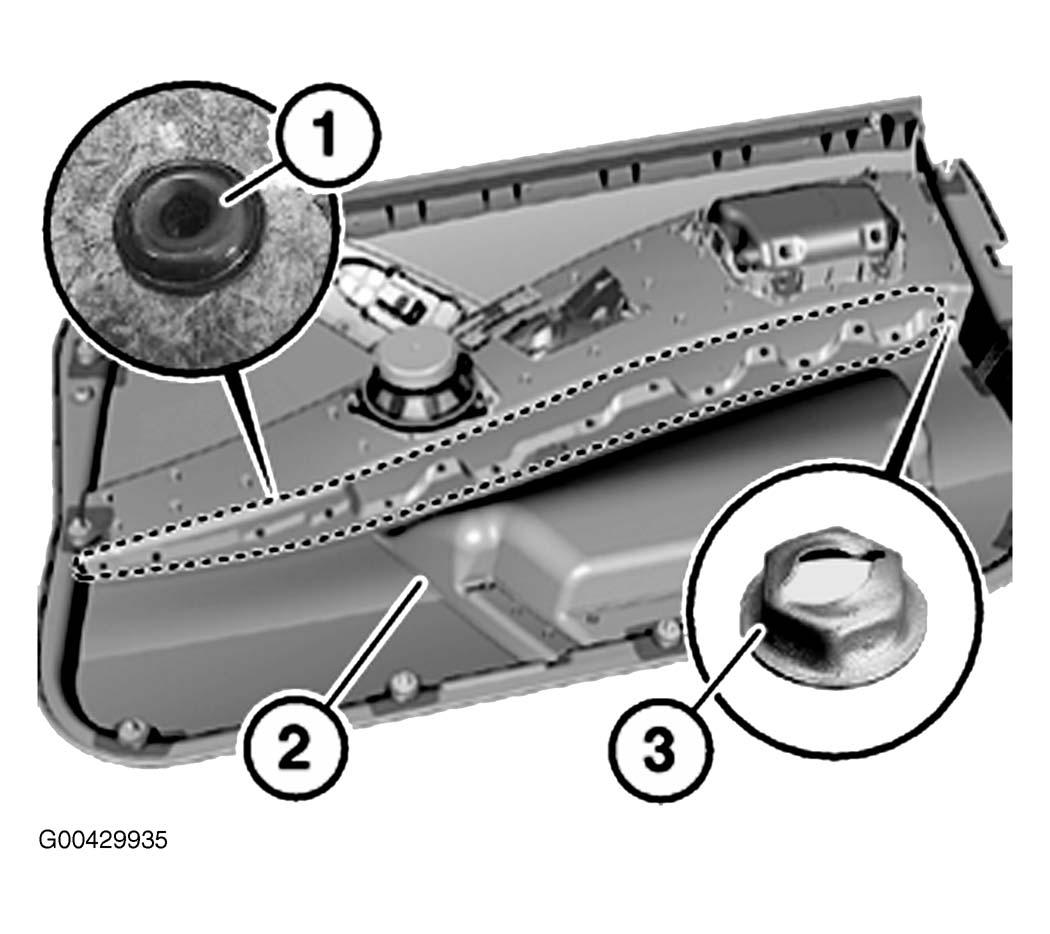

Fig 2: Removing Armrest

G00429935

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach armrest (1) to door trim panel and screw down with nuts (2).

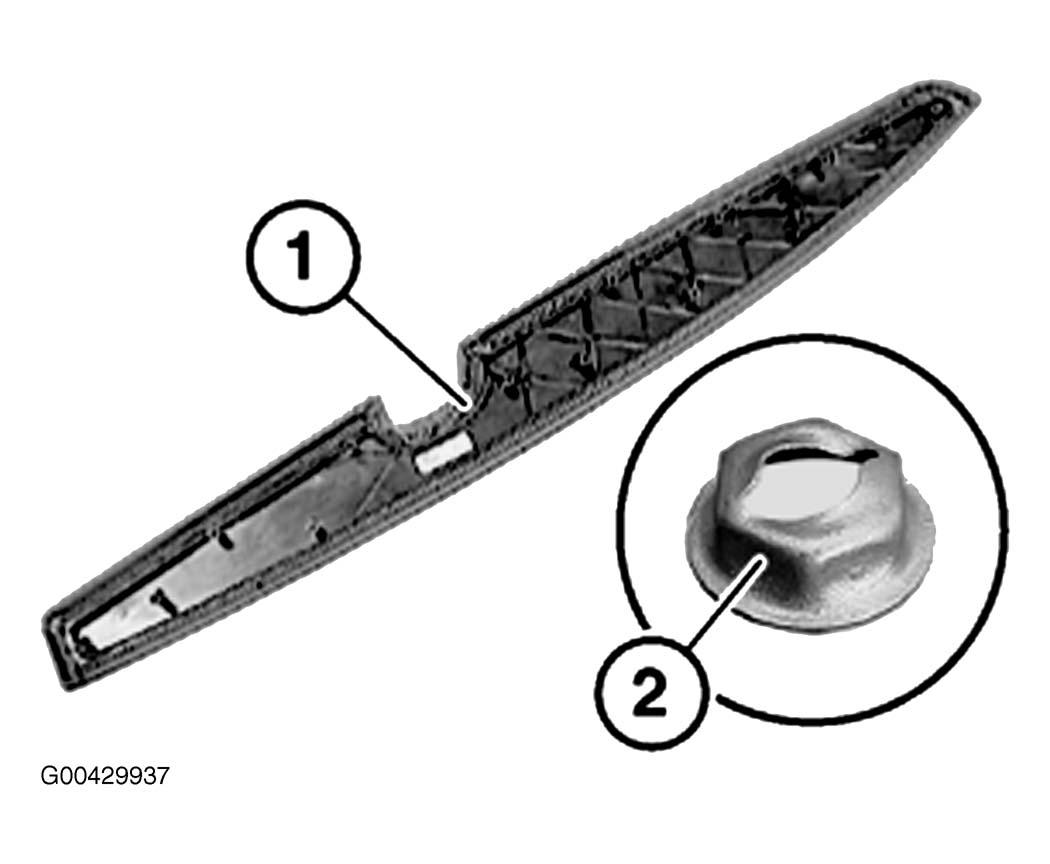

Fig 3: Attaching Armrest To Door Trim Panel

G00429937

Courtesy of BMW OF NORTH AMERICA, INC.
