51 41 019 Removing and installing/replacing door handle on front left or right door trim panel (up to 03/2007)

Necessary preliminary tasks:

• Remove FRONT DOOR TRIM PANEL

Unscrew nuts (1).

Tightening torque: see 5AZ in 51 41 FRONT DOOR TRIM PANEL WITH ARMRESTS .

Unscrew nuts (2).

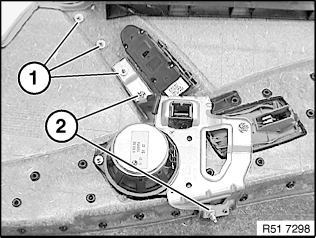

Fig 1: Identifying Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Lever inside handle (1)

1. out of upper screw fastening points
2. and pull off upwards from door trim panel (2)

Fig 2: Removing Inside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Screws (1) and fixtures of inside handle (2) must not be damaged.

Fig 3: Identifying Inside Handle And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Feed inside handle (1) in direction of arrow out of decorative strip (2) and remove.

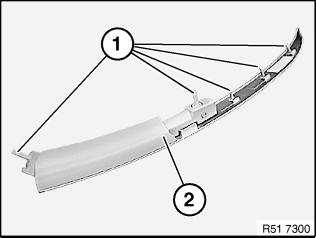

Fig 4: Identifying Inside Handle And Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on decorative strip (2) must not be damaged.

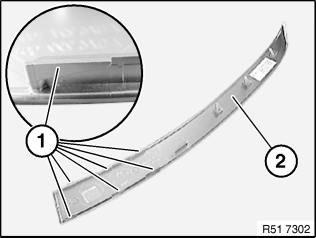

Fig 5: Identifying Catches On Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.
