51 41 018 Replacing speaker trim on front left or right door trim panel (long version or from 03/2007)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip speaker trim (1) with special tool 00 9 322 .

Installation:

Speaker trim (1) can only be installed in one position.

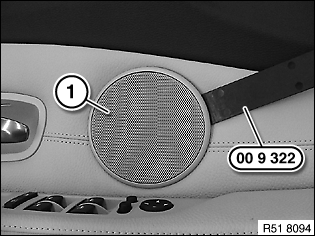

Fig 1: Removing Speaker Trim With Special Tool 00 9 322

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1 and 2) must not be damaged.

Catch (2) is larger than catches (1) and must be inserted in the corresponding catch in the door trim panel.

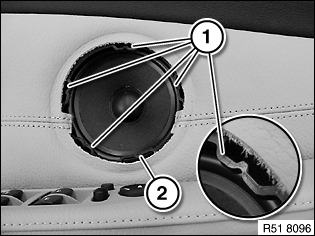

Fig 2: Identifying Catches On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1 and 2) must not be damaged.

Catch (2) is larger than catches (1).

Corresponding catch on speaker trim must be inserted in catch (2).

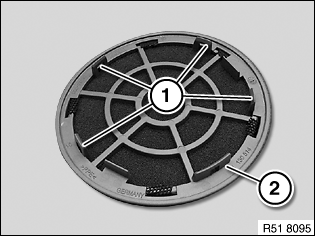

Fig 3: Identifying Catches

Courtesy of BMW OF NORTH AMERICA, INC.
