51 11 180 Removing and installing/replacing trim grille in bumper trim (from 03/2007)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FINISHER ROD
- Remove BUMPER TRIM

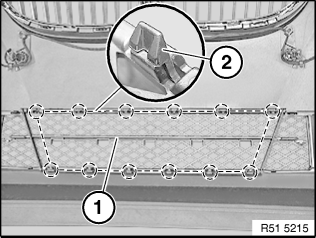

Release trim grille (1) from catches (2) and remove.
Installation:
Catches (2) must not be damaged.
Trim grille (1) must snap firmly into place.
