51 11 181 Removing and installing/replacing finisher rod on trim grille for front bumper trim
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

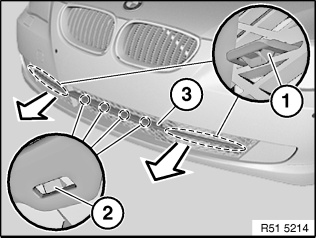

Release catches (1 and 2) from left to right.
Release catches (1) with special tool 00 9 322 from outside.
Release catches (2).
Remove finisher rod (3).
Installation
Catches (1 and 2) must not be damaged.
