51 11 160 Removing and installing/replacing trim for air duct on bumper trim
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FINISHER ROD

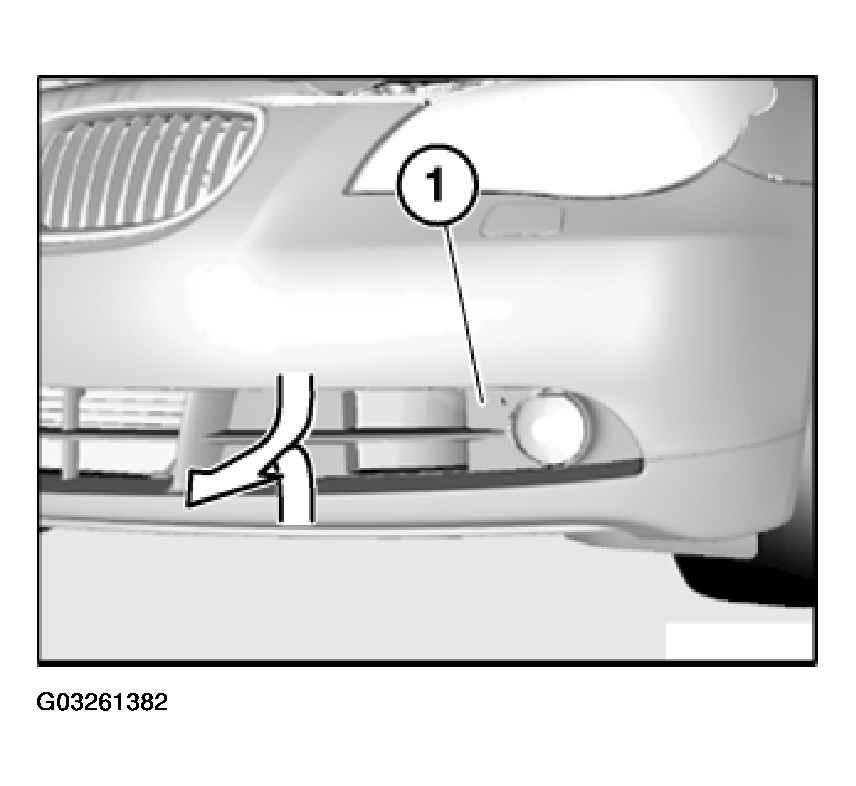

Unclip trim (1) by moving up or down.
Remove trim towards front.
Installation:
Retaining elements must not be damaged.
Trim must snap securely into place.
