64 22 191 Removing and installing/replacing rear cabin fresh air grille (High A/C system)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR CENTER CONSOLE TRIM

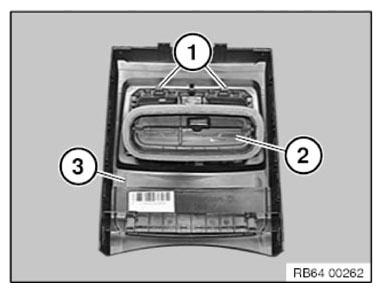

Unclip the retaining lugs (1) of the fresh air grille (2) toward the bottom.
Remove the fresh air grille (2) from the cover (3) toward the front.
Installation note:
Retaining lugs (1) must not be damaged.
