51 16 163 Removing and installing/replacing rear center console cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

IMPORTANT: Risk of damage!
If necessary, mask center console (1) and cover (2) with plastic adhesive tape.

Press special tool 00 9 325 between center console (1) and cover (2).

Unclip cover (2) towards rear.

If necessary, unlock associated plug connections and disconnect.

Remove cover (2).

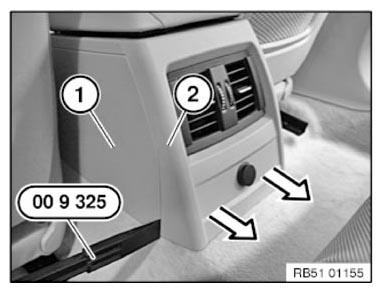

Fig 1: Pressing Special Tool (00 9 325) Between Center Console And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latches on cover and counterparts on center console must not be missing or damaged.

Replacement (depending on version):

Modify FRESH AIR GRILLE IN REAR PASSENGER COMPARTMENT (1)
Modify 12 V charging socket (2)
Modify SWITCH (3)

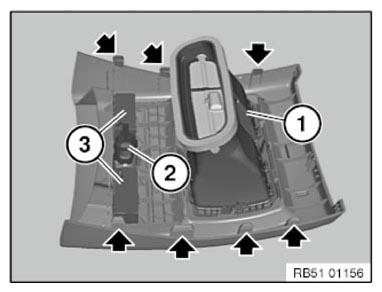

Fig 2: Center Console Cover Latches
Courtesy of BMW OF NORTH AMERICA, INC.
