35 11 000 Removing and installing complete bearing block for foot pedal
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, 2006 BMW 530xi, and 2006 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove pedal trim. See 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
- Vehicles with electric steering column:
- Remove electric steering column drive. See 67 64 010 REMOVING AND INSTALLING/REPLACING DRIVE UNIT FOR ELECTRIC STEERING COLUMN ADJUSTMENT .
- Vehicles with manual transmission:
- Remove clutch pedal. See 35 31 000 Removing And Installing / Replacing Clutch Pedal .
- Remove clutch master cylinder. See CLUTCHES - 5-SERIES (E60) .
IMPORTANT:
After completion of work, carry out function check.

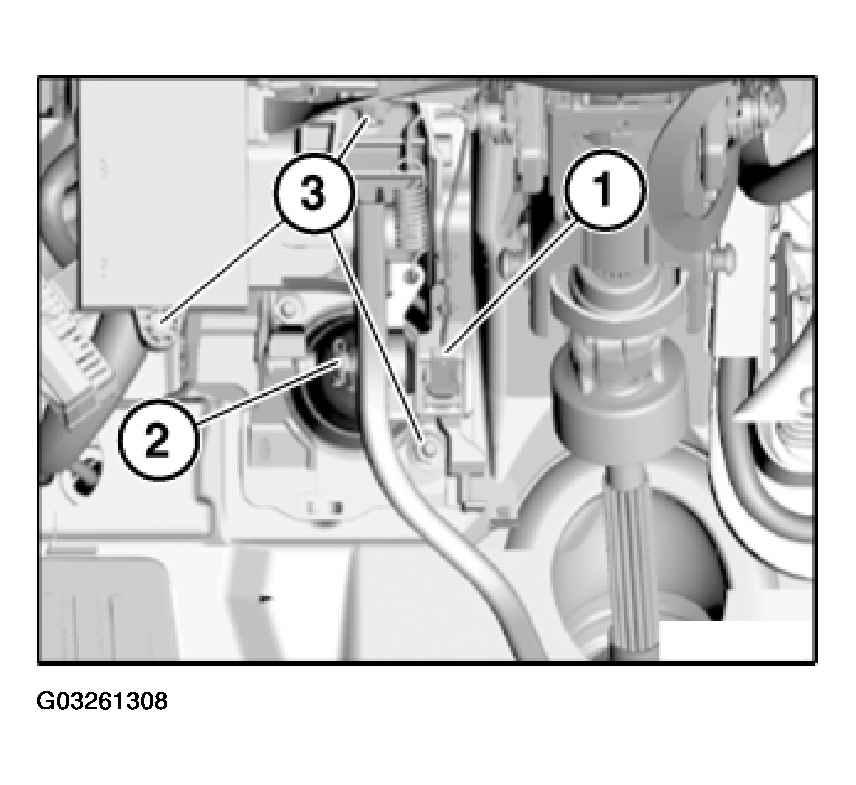

Unfasten plug connection (1).
Remove locking clip (2) and disengage and pull out locking pin.
Release nuts (3) and remove bearing block.
Installation:
Replace self-locking nuts.
Tightening torque, see 35 11 1AZ in PEDALS - TIGHTENING TORQUES .
