35 31 000 Removing and installing/replacing clutch pedal

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, 2006 BMW 530xi, and 2006 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove pedal trim. See 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
Remove CAS control unit. See 61 35 015 REMOVING AND INSTALLING (REPLACING) CONTROL UNIT FOR CAR ACCESS SYSTEM .

Check function after completing tasks.

Disconnect return spring (1).

Unclip fastener (2).

Pull out pin (3).

If necessary, disconnect over-center helper spring.

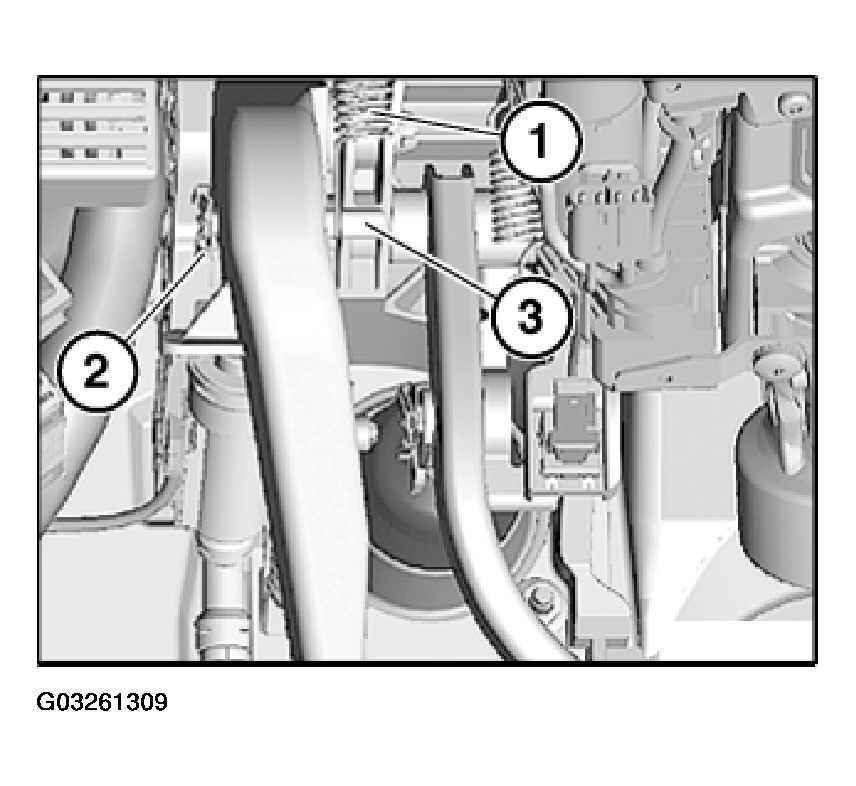

Fig 1: Disconnecting Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Press hook (1) together and pull out pin.

Installation:

Replace pin.

Remove clutch pedal.

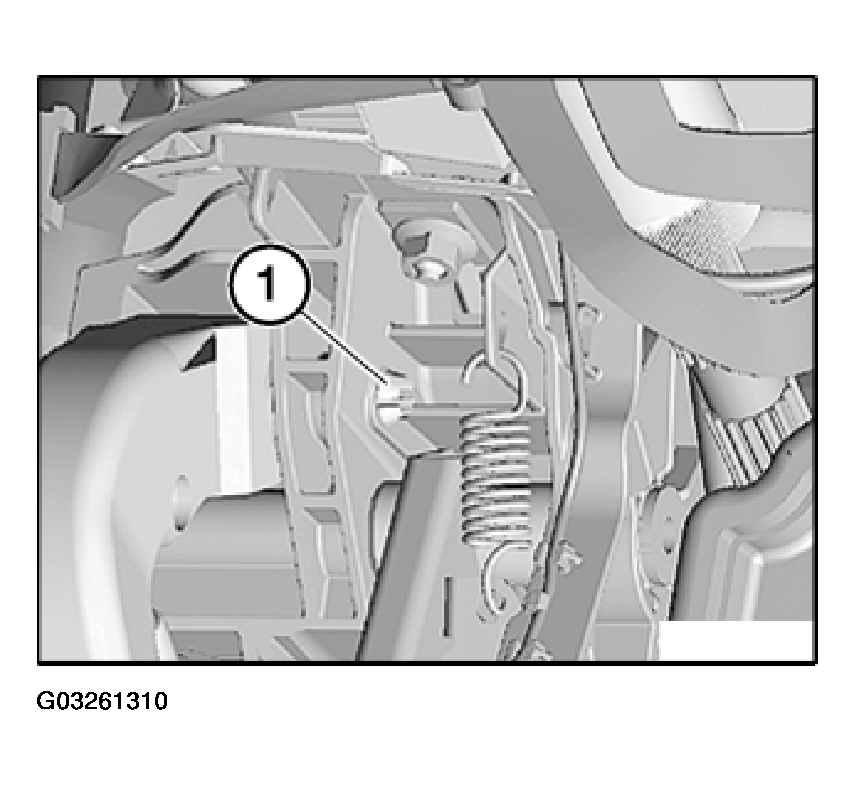

Fig 2: Pressing Hook And Pulling Out Pin

Courtesy of BMW OF NORTH AMERICA, INC.
