13 51 017 Removing and installing/replacing high pressure pump (N47 D16/20 K/U/O/T 1)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Special tool 11 8 741 from special tool set 11 8 740 must - after it has been installed - without fail remain bolted in the camshaft sprocket until all repair work has been completed.
When working on the fuel circuit, you must protect the alternator against dirt contamination.
Cover alternator with suitable materials. Failure to comply with this procedure may result in an alternator malfunction.
NOTE: After disconnecting the fuel injection line, it is absolutely essential to seal the high pressure pump and the high-pressure accumulator with protective caps 32 1 270 .
The position of the high pressure pump in relation to the valve gear does not affect its function. However, it must be taken into account on removal and installation.
For purposes of clarity, all pictures have been created to show the engine removed.

Recycling:

Catch and dispose of escaping fuel.

Observe country-specific waste disposal regulations.

Necessary preliminary tasks:

Release union nut on pressure line of the high-pressure pump.

Tightening torque 13 53 2AZ .

Do not remove the high pressure line.

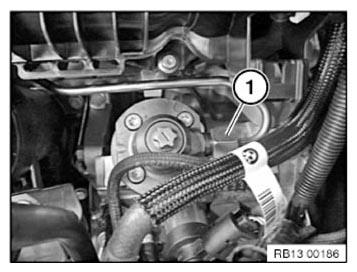

Fig 1: Identifying High Pressure Pump Line Union Nut
G10102443Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) on metering unit and detach.

Detach fuel feed and return lines (2) of high pressure pump.

Installation note:

Replace clamps. Tightening torque 13 51 3AZ .

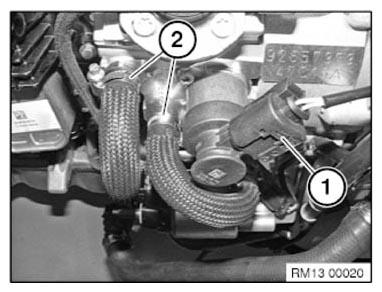

Fig 2: Identifying Metering Unit Connector
G09945717Courtesy of BMW OF NORTH AMERICA, INC.

Release sealing cap in the timing case housing. Picture shows the sealing cap on the removed engine. Replace sealing cap with O-ring.

Installation note:

Tightening torque 11 14 1AZ .

Fig 3: Identifying Timing Case Housing Sealing Cap
G09914561Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 11 8 741 from special tool set 11 8 740 for positioning the camshaft sprocket of the high pressure pump. Then remove special tool 11 8 742. Special tool 11 8 741 remains in the timing case housing until the end of the repair work.

Fig 4: Screwing Special Tool (11 8 741)
G09914562Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1), (2), (3) and (4).

Remove high pressure pump support.

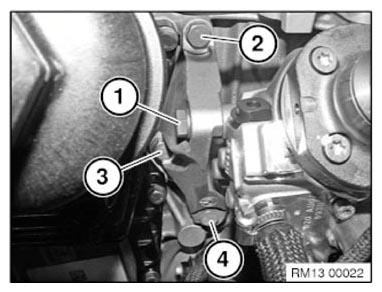

Fig 5: High Pressure Pump Support Bolts Tightening/Loosening Sequence
G09945720Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 13 51 4AZ .

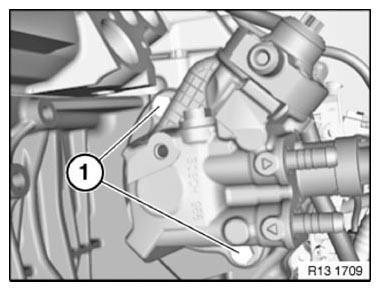

Fig 6: Identifying High Pressure Pump Screws
G09945721Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Special tool 11 8 741 remains in the timing case housing.
Central bolt remains in camshaft sprocket.

Release screw connection between high pressure pump and camshaft sprocket.

NOTE: Central bolt is supported on special tool 11 8 740 until high pressure pump is pressed out.
Fig 7: Releasing Screw Connection Between High Pressure Pump And Camshaft Sprocket
G09914566Courtesy of BMW OF NORTH AMERICA, INC.

Remove high pressure pump.

Installation note:

Tightening torque 13 52 2AZ .

Fig 8: Locating High Pressure Pump Shaft Sprocket Wheel
G09914567Courtesy of BMW OF NORTH AMERICA, INC.

To insert the high pressure pump shaft in the sprocket wheel (1), it may be necessary to swing the high pressure pump through several degrees (spline groove-lug fit, see arrow in illustration). Then rotate high pressure pump back into screwing position.

Replacing high pressure pump:

When installing a new  high pressure pump, adapt the high pressure pump camshaft sprocket assignment. To do so, turn back high pressure pump at set-back  part of shaft 45° clockwise (top view). Do not damage the shaft, especially the taper.

Fig 9: Identifying High Pressure Pump
G09914568Courtesy of BMW OF NORTH AMERICA, INC.

When installing the high pressure pump support, adhere to the screwing sequence.

Installation note:

  1. Tighten down to head (gap-free) hand-tight, sequence 1-2-3-4
  2. Tighten to final torque

    Tightening sequence 2-3-4-1

    Tightening torque 13 51 2AZ .

    Fig 10: High Pressure Pump Support Bolts Tightening/Loosening Sequence
    G09945720Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Assemble engine.

Bleed fuel system using BMW diagnosis system.

Check fuel system for tightness.

Reset adaptation of electric fuel pump with BMW diagnosis system.
