51 75 010 Removing and installing/replacing left or right steering assembly cover
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT UNDERBODY PROTECTION

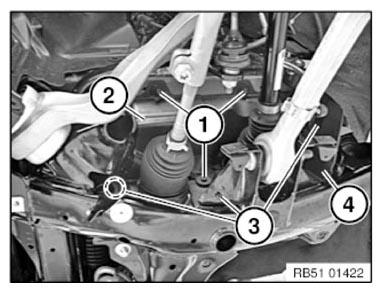

Release screws (1) and feed out cover (2).
Release expanding rivets (3) and feed out cover (4).
Installation note:
Replace faulty expanding rivets (3).
Ensure the correct seating of the covers (2 and 4).
