51 13 307 Removing and installing/replacing the railing on the left or right (version with panorama glass roof)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

LOWER ROOFLINER

Release screws (1) and remove holder (2).

Undo bolts (3) and remove bracket (4).

Tightening torque: 51 47 2AZ .

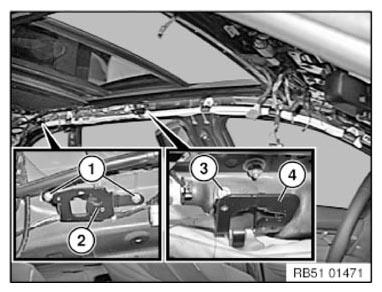

Fig 1: Railing, Bracket, Holder And Screws

G10153289

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Tightening torque: 51 13 4AZ .

Installation note:

Sequence of screw connections:

Center Rear Front

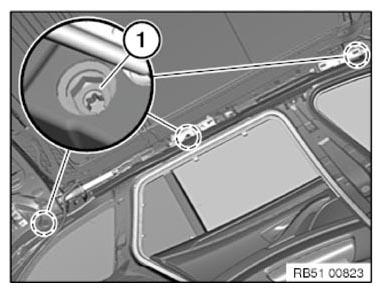

Fig 2: Nuts

G10153290

Courtesy of BMW OF NORTH AMERICA, INC.

Remove roof railing (1) in direction of arrow.

Installation note:

Roof rails may only be inserted in the roof channel with light uniform pressure (do not use impact on the roof rails).

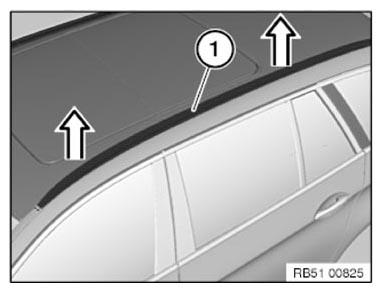

Fig 3: Removing Roof Railing

G09948084

Courtesy of BMW OF NORTH AMERICA, INC.
