51 16 366 Removing and installing/replacing right glove box with housing

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

• Remove TRIM FOR INSTRUMENT PANEL, BOTTOM LEFT
• Remove SIDE PANEL ON DASHBOARD

US national-market version:

• Remove AIRBAG MODULE FOR FRONT PASSENGER KNEE PROTECTION

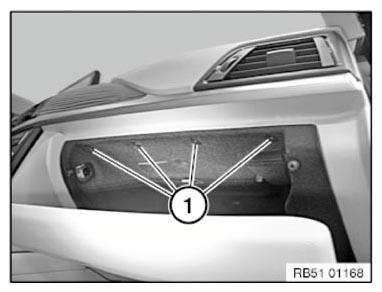

Release screws (1).

Tightening torque: 51 16 2AZ .

Installation note:

Ensure the glove box is correctly seat on the holder (2).

Fig 1: Glove Box Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

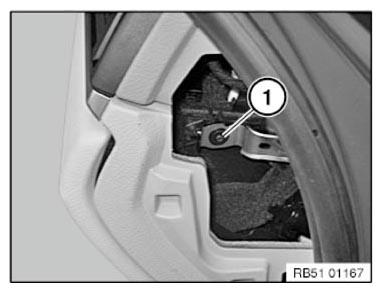

Release screw (1).

Tightening torque: 51 16 2AZ .

Fig 2: Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Open glovebox.

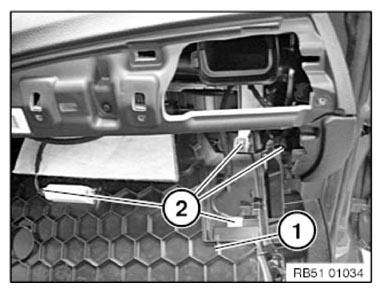

Release screws (1).

Tightening torque: 51 16 2AZ .

Fig 3: Glovebox Screw

Courtesy of BMW OF NORTH AMERICA, INC.

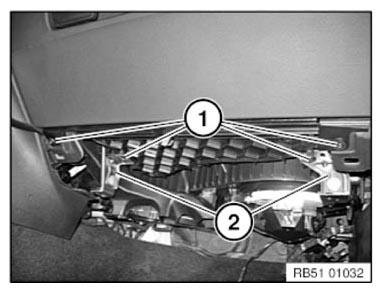

Pull glove box (1) out slightly and unlock and disconnect depending on the plug connection versions (2).

Remove glove box (1).

Fig 4: Glove Box

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

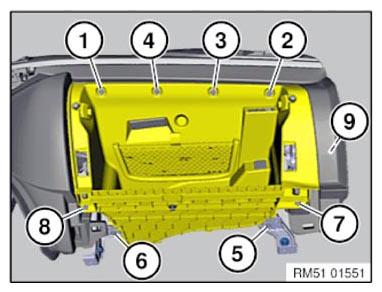

To avoid straining the glove box and causing annoying noises, screw it in place in the specified order (1 to 9).

This also helps achieve optimal gap spacing.

Fig 5: Glove Box Screws Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

In the case of replacement, the following parts need to be remounted:

• GLOVE BOX DAMPER
• GLOVE BOX COVER
• GLOVEBOX LIGHT

Depending on version:

• USB INTERFACE CONNECTING SOCKET /blind plate
• HOTEL POSITION SWITCH /blind plate
