51 16 365 Removing and installing/replacing glove box cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Remove RIGHT GLOVE BOX

NOTE: For better illustration, the damper has already been disconnected from the retaining bracket.

Unclip damper (1) from retaining bracket (2) and slide back in direction of arrow.

Fig 1: Removing Damper From Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

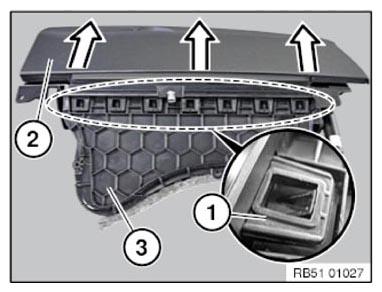

Loosen latch mechanisms (1) and feed glove box cover (2) out of housing (3) in direction of arrow.

Fig 2: Removing Glove Box Cover

Courtesy of BMW OF NORTH AMERICA, INC.

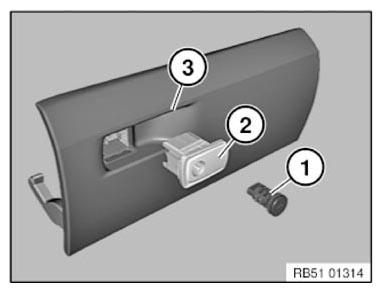

NOTE: It is not possible to remove the lock barrel (1) and opener (2) without causing damage.

In the case of replacement (version with lock barrel):

Click lock barrel (1) into new opener (2) (ensure that it is in the correct installation position).

Click opener (2) into the glove box cover (3).

Fig 3: Glove Box Cover, Lock Barrel And Opener

Courtesy of BMW OF NORTH AMERICA, INC.

In the case of replacement (version without lock barrel):

Click opener (2) into the glove box cover (3).
