51 16 045 Removing and installing or replacing retaining ring on left or right exterior mirror

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PROTECTIVE CAP FROM EXTERIOR MIRROR

Release screw (1) on drive (2) for electrically adjustable exterior mirror.

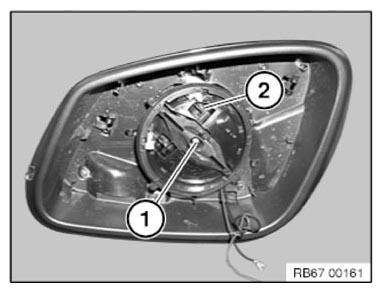

Fig 1: Electrically Adjustable Exterior Mirror Screw And Drive

G10096975

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip drive (1) from rear at marked points from mirror housing.

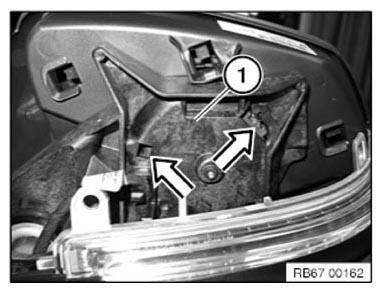

Fig 2: Removing Mirror Housing Drive

G10096976

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully unlock and disconnect plug connection (1) at the marked points.

Remove electric motor (2).

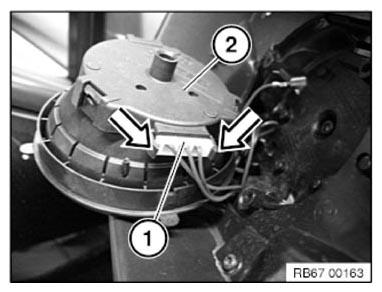

Fig 3: Removing Electric Motor

G10096977

Courtesy of BMW OF NORTH AMERICA, INC.

Fold exterior mirror forwards.

Release screws (1) from circlip (2).

Feed out retaining ring (2) in direction of arrow.

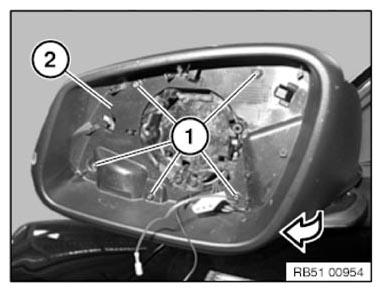

Fig 4: Turning Exterior Mirror

G10096978

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure retaining ring (1) is correctly mounted on turn indicator (2) and housing (3).

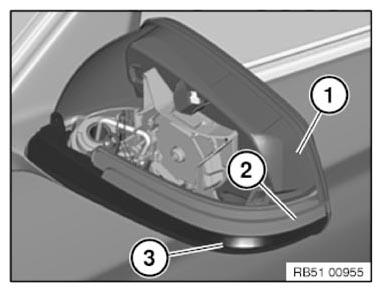

Fig 5: Turn Indicator, Housing And Retaining Ring

G10096979

Courtesy of BMW OF NORTH AMERICA, INC.
