51 16 041 Removing and installing/replacing cover cap on left or right exterior mirror

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIRROR GLASS

Press together latch mechanisms (1) and remove protective cap from the outside.

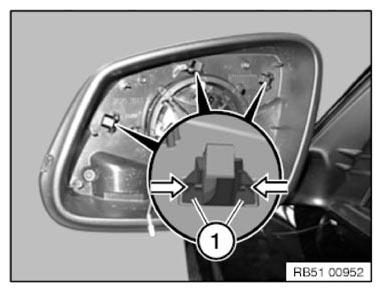

Fig 1: Pressing Exterior Mirror Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) and guides (2) on protective cap (3) must not be damaged or missing.

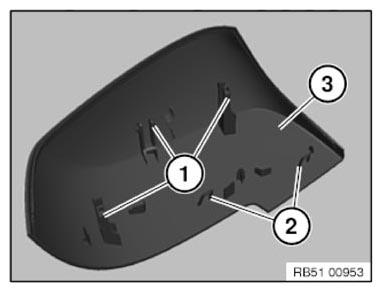

Fig 2: Exterior Mirror Latch Mechanisms, Guides And Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.
