51 16 040 Removing and installing/replacing housing on left or right exterior mirror

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PROTECTIVE CAP ON EXTERIOR MIRROR

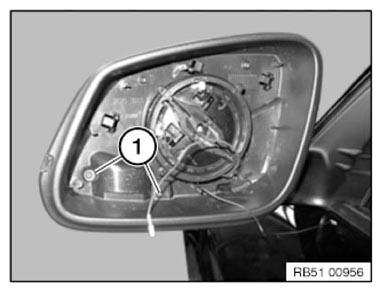

Release screws (1).

Fig 1: Screws

G10097017

Courtesy of BMW OF NORTH AMERICA, INC.

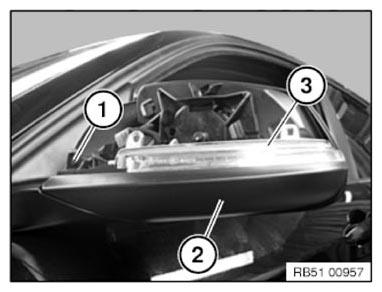

Release screw (1).

Remove housing (2) carefully and disconnect plug connection at side repeater (3).

Fig 2: Exterior Mirror, Side Repeater And Screw

G10097018

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure retaining ring (1) is correctly mounted on side repeater (2) and housing (3).

Fig 3: Turn Indicator, Housing And Retaining Ring

G10096979

Courtesy of BMW OF NORTH AMERICA, INC.

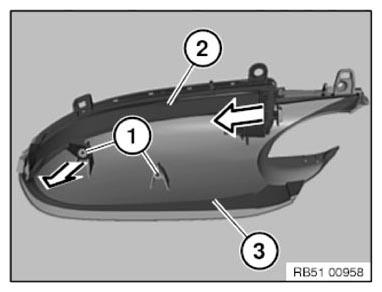

Installation note:

Screw holes (1) must not be damaged.

Replacement:

Feed side repeater (2) out of housing (3) in direction of arrow.

Fig 4: Removing Side Repeater Out Of Housing

G10097020

Courtesy of BMW OF NORTH AMERICA, INC.
