51 16 001 Removing and installing/replacing mirror on left or right front door
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- REMOVE inner window cavity cover strip

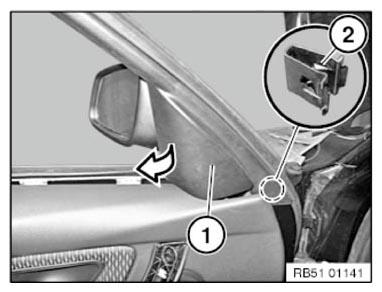

Release door window frame cover (1) at clamp (2) and partially feed out.
Installation note:
Make sure door window frame (1) is correctly seated.
IMPORTANT:
Secure mirror against falling off.

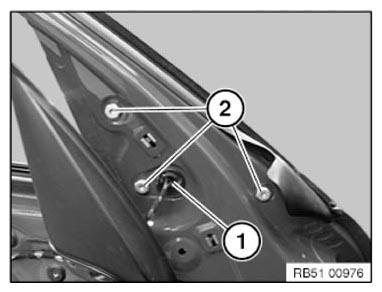

Unfasten plug connection (1) and disconnect.
Release screws (2) and remove inside mirror.
Tightening torque: 51 16 1AZ .
Installation note:
Due to self-tapping screws, the tightening torque of the new rearview mirror increases by 2 Nm.
Installation note:

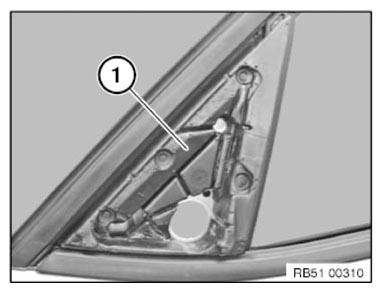

The sound insulation (1) must not be damaged or missing.
Run a function check.
Replacement:
- Remount MIRROR GLASS
- Remount PROTECTIVE CAP
