54 10... Removing and installing or replacing outer gaiter for glass tilt sunroof

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

IMPORTANT: Handle the gaiter with extreme care throughout the entire procedure.
Soft component is highly susceptible to tearing.

Necessary preliminary tasks:

Remove TRIM STRIP ON ROOF FRAME
Remove INNER GAITER

Unlock and remove clips (1).

Installation note:

Firstly install gaiter on glass tilt sunroof cover.

Fig 1: Locating Clips

Courtesy of BMW OF NORTH AMERICA, INC.

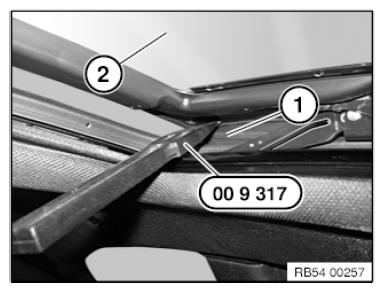

Lever out gaiter (1) from glass tilt sunroof cover (2) downwards with special tool 00 9 317 .

Installation note:

If necessary, replace faulty gaiter.

Install gaiter on glass tilt sunroof cover from rear to front.

Fig 2: Removing Gaiter From Glass Tilt Sunroof Cover

Courtesy of BMW OF NORTH AMERICA, INC.
