54 12 015 Replacing left or right gaiter for glass slide/tilt sunroof
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Handle the gaiter with extreme care throughout the entire procedure.
Soft component is highly susceptible to tearing and kinking.
Grip the gaiter by its attachment strip (aluminium strip) and do not pull on the rubber. (risk of damage.).
Soft component is highly susceptible to tearing and kinking.
Grip the gaiter by its attachment strip (aluminium strip) and do not pull on the rubber. (risk of damage.).
Move glass slide/tilt sunroof in vent position:

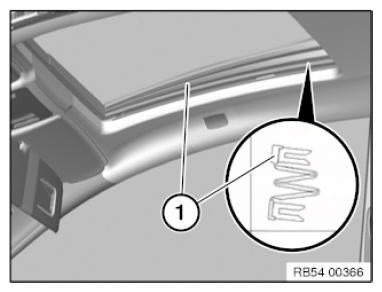

- Carefully detach gaiter on the aluminum strip (1) from upper guide.
- Carefully detach gaiter on the aluminium strip (1) from bottom guide.
Installation note:
Check that attachment strips (aluminium strip) are firmly seated on guides.
If necessary, replace faulty gaiter.
