54 10 155 Removing and installing/replacing rear floating headlining

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT FLOATING HEADLINING :

IMPORTANT: Make sure that grease on the rails does not come into contact with the floating headlining.

Move rear floating headlining (1) forwards (close).

Unfasten screws (2).

Tightening torque 54 10 03AZ .

Fig 1: Identifying Floating Headlining Screws

G04761442

Courtesy of BMW OF NORTH AMERICA, INC.

Slide floating headlining (1) uniformly forwards.

If necessary, raise slider (2) for front and rear floating headlining.

Move slider (2) back to the point where there is no longer any contact to the floating headlining (1).

Fig 2: Raising Slider And Sliding Floating Headlining Forward

G04761443

Courtesy of BMW OF NORTH AMERICA, INC.

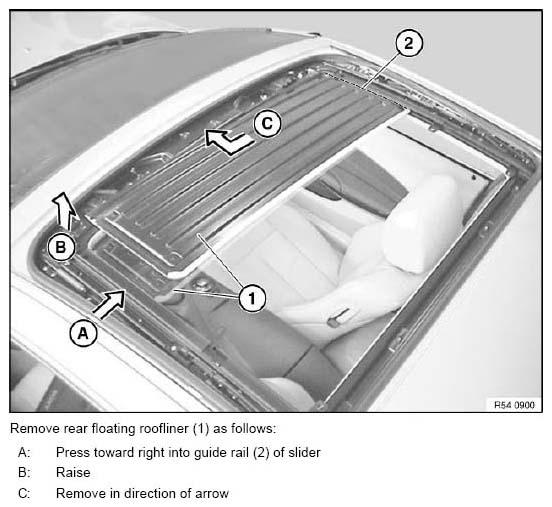

Remove rear floating headlining (1) as follows:

Press to the right in guide rail (2) of slider
Raise upward
Remove in direction of arrow

Fig 3: Removing Rear Floating Headlining

G04761444

Courtesy of BMW OF NORTH AMERICA, INC.
